Inogeni Toggle Rooms XT

Inogeni Toggle Rooms XT
One cable to own the room! Any room!
ONE USB-C CABLE (100W) TO TAKE CONTROL OF YOUR LARGE ROOM
4K BYOD/BYOM FOR LARGE ROOMS:?3 host switcher for USB/HDMI devices with extension
Switch 6 peripherals between 3 hosts:?Redefine collaboration with Bring Your Own Device (BYOD) and Bring Your Own Meeting (BYOM) support, offering flexibility for various meeting scenarios via a push button or control pad.
?Versatile technology (BYOD/BYOM)

Automatic or manual switching between Room PC and Laptops (3 hosts capable).
Direct connection of 5x USB devices + 1 HDMI display.
Flexible laptop connectivity: USB-C (100W) or USB-B + HDMI.
2 box system: At the display (Room PC hub) and at the table (laptop hub).

Connected with a single CAT6A cable
Uncompressed video signal via HDBaseT proven technology
Reach: 40 m / 132 ft at 4K60 and 70 m / 230 ft at 1080p

1 display: 4K60 / 16:9 and 5K30 / 21:9 widescreen (HDMI).
Tested and compatible by design with major UC systems and camera manufacturers, such as Crestron, Logitech, Lenovo, Poly, MAXHUB, Jabra, Teams, Zoom, etc.

?
?Flexibility

USB 3.2 Gen 1/USB 3.1 Gen 1, backward compatible with USB 3.0/2.0.
IP, RS-232 and GPI control.
Optional host switch button: Table surface-mounted button for BYOM laptop selection.

?
Peace of mind

Made in Canada and TAA-compliant.
Quality and reliability.
No driver required.
New Maestro device controller for easy configuration and update.

?
TOGGLE ROOMS XT facilitates videoconferencing management without any hassles. Users can switch seamlessly without waiting.
?
How it works
ONE CABLE SOLUTION TO TAKE CONTROL OF A LARGE ROOM
Switch up to 6 peripherals between 3 hosts (5 USB + 1 display):?This flexibility extends across various settings, from large boardrooms to classrooms and auditoriums, making it an ideal solution for unified videoconferences.

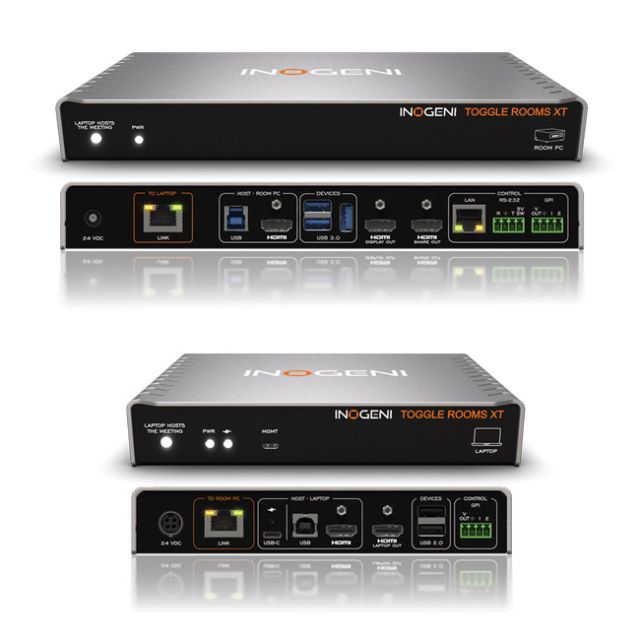

Room PC hub

Connect up to 3 USB3 devices and an HDMI display
Connect to the UC system (such as Lenovo, Logitech, MAXHUB Room PC)
4K60 / 16:9 and 5K30 / 21:9 wide screen (HDMI)

?
CAT6A extension cable

Reach up to 70 m/230 ft from the main Room PC with a CAT6A cable
Video signal up to 40 m for 4K60 and up to 70 m for 4K30

?
Laptop hub

Connect up to 2 USB2 devices
Connect the laptop via USB-C (100W) or HDMI and USB-B
INO-HOST BUTTON via GPI
Routes Laptop content to control pads such as MAXHUB XCore and the Logitech Tap

?
ROOM PC HOSTS THE MEETING

Room PC mode: In this mode, the USB and HDMI devices are routed only to the Room PC.
Room PC mode with laptop sharing content (BYOD: ?If the user wants to send HDMI content from the?laptop??s USB-C or HDMI connectionto the Room PC, it is possible to do so with the HDMI SHARE output connection.

?
?LAPTOP HOSTS THE MEETING
?

Laptop BYOM mode:In this mode, the laptop is the system that is currently selected for the main USB and HDMI peripherals. The Room PC is completely disconnected from the setup.

TOGGLE ROOMS XT ???SWITCH from BYOD to BYOM modes with only one cable for a Room PC and laptop?
?
Switch up to 6 peripherals between 3 hosts (5 USB + 1 display) and use one USB-C (100W) cable to connect the laptop.?Redefine collaboration with Bring Your Own Device (BYOD) and Bring Your Own Meeting (BYOM) support, offering flexibility for various meeting scenarios via a push button or control pad.
AUTOMATIC/MANUAL HOST SWITCHINGTOGGLE ROOM XT comprises 2 hubslinked with a CAT6A extension of up to 70 m.
?Host connections for the TOGGLE ROOMS XT / Room PC & Laptop hubs

Resolutions:4K60 / 16:9 and 5K30 / 21:9 widescreen (HDMI)
Reach:?Up to 70 m/230 ft from the main Room PC with CAT6A cable
Video signal: Up to 40 m/132 ft for 4K60 and up to 70 m/230 ft for 4K30

?
TOGGLE ROOMS XT ???Room PC hub
Near the Room PC system, display, videobar, camera and audio.
?Link to the Room PC:

1x USB-B host connection and 1x HDMI 2.0 video input.

?
?INPUTS

3x USB 3.0/2.0 devices (high-quality cameras, videobar or audio devices).

?
?OUTPUTS4K60 in 16:9 and 5K30 21:9 in widescreen (HDMI)

1x HDMI 2.0, up to 4K60 for DISPLAY connection from selected host.
1x HDMI 2.0, up to 4K60 for SHARE connection from BYOD to Room PC HDMI ingest.

?
CONTROL OPTIONS:

RS-232
IP
2x GPI

TOGGLE ROOMS XT ???Laptop hub
Under the table connected to laptop, speakerphone and control pad.
INPUTSLaptop connections

1x USB-C host connection (USB 2.0, DP alternate mode and power delivery 100W)

8 m/6 ft USB-C 100W cable included.
10 m/33 ft USB-C tested solutions.

?? OR ??
1x USB-B host connection and 1x HDMI 2.0 video input, up to 4K60.

?
Other devices

2x USB 2.0 devices (speaker phone, 360 camera, document camera, etc.).
INO-HOST BUTTON via GPI.

?
?OUTPUT

Routes Laptop content to control pads, such as MAXHUB XCore and the Logitech Tap.
1x HDMI 2.0

?
?COST-EFFECTIVE and RELIABLE SOLUTION

Simple to install and connect (no driver required).
Compatibility with leading MTR, Zoom Rooms, and UC systems.
Compatible with USB cameras, videobars and videoconferencing audio devices.

?
CONTROL OPTIONS
?

RS-232
IP
2x GPI
Host switch button: Table surface-mounted button for BYOM laptop selection

Accessories are available separately
OPTIONAL: INO ?? Host button

?
OTHER FEATURES

Bidirectional audio system AEC works for videobars, such as Cisco, Poly, Logitech, Bose, Shure, Sennheiser, Nureva, Biamp or Lumens.
Multiple mounting options.
Visual LED status.
Switch button on the front of the devices.
Audio embedded in USB and HDMI signal.

?
ADVANCED VIDEO QUALITY

Automatic scaling.
Supports multiple devices on the same host.
Device configuration via the?INOGENI MAESTRO?device controller.

?
Compatible with all USB cameras, video bars and pro-AV audio devices
Unlock ultimate versatility with INOGENI??s TOGGLE ROOMS XT! It is fully compatible with all USB cameras, videobars and pro-AV audio speakerphones, microphones, or speakers, including Vaddio, Huddly, HuddleCamHD, AVer, Jabra, Logitech, Marshall cameras, and web cameras
