Lumantek Ez-Distributor

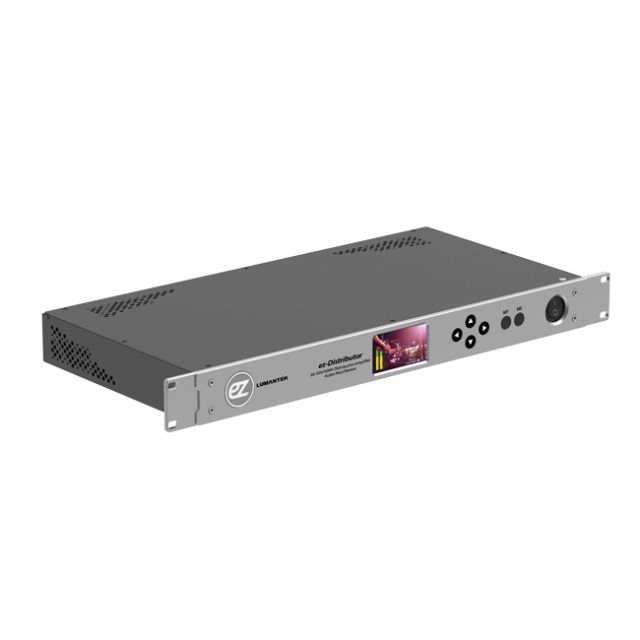

Lumantek Distribution Amplifier With Lcd Monitoring (12XSDI / 2XHDMI Outputs) Lumantek'S New Ez-Distributor Is A 14 Channel Distributor In 1Ru Size. It Has 1 X HDMI And 1 X 3G-SDI Input, And 2 X HDMI Outputs And 12 X 3G-SDI Outputs. You Can Embed External Audio And De-Embed Incoming Video Audio. With The Lcd Screen, It Is Very Easy To Monitor What Is Being Played Through The Distributor. System Specifications Data Input SDI Video Input: Sd/HD/3G-SDI (Bnc 75ÃŽ©) X1 HDMI Video Input: Sd/HD/3G (HDMI Type A) X1 Video Formats - 720X480I@59.94/60- 720X576I@50- 1280X720P@50/59.94/60- 1920X1080I@50/59.94/60- 1920X1080P@23.94/24/25/29.97/30 - 1920X1080P@50/59.94/60 Audio Input Xlr (Female) X2 Data Output SDI Video Output: Sd/HD/3G-SDI (Bnc 75ÃŽ©) X12 HDMI Video Output: Sd/HD/3G (HDMI Type A) X2 Video Formats - 720X480I@59.94/60- 720X576I@50- 1280X720P@50/59.94/60- 1920X1080I@50/59.94/60- 1920X1080P@23.94/24/25/29.97/30 - 1920X1080P@50/59.94/60 Audio Output Xlr (Male) X2 Connections Update : Debug (Micro-USB)X1 Display 2.7 Inch Tft Lcd : Input Video Display(SDI Or HDMI), Audio Level Meter Display, Input Video Resolution Display Electrical Power Input: 100~240Vac @ 50/60Hz Power Consumption: 10W(Max.) Operation Temperature: 0~45 C New Physical Dimension: 44(H) X 478(W) X 226(D) Weight: 3 Kg
