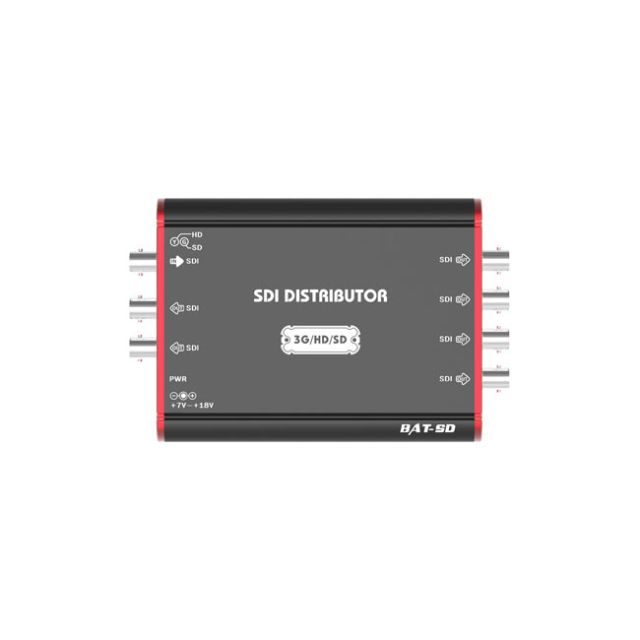

Lumantek Mini Converter BAT Series - SDI 6* Distributor
Lumantek Mini Converter BAT Series - SDI 6* Distributor
Key Features
Description
Description
Lumantek Mini Converter BAT Series - SDI 6* Distributor
Input Electrical Specifications
?
?
?
?
Parameter
Min.
Max.
Units
Typ.
SDI Input Cable Lengths
SD-SDI (Belden 1694A)
250
???
m
???
???
HD-SDI (Belden 1694A)
170
???
m
???
???
3G-SDI (Belden 1694A)
155
???
m
???
RF Input
Connector (1 Port)
75ohm, 1 x BNC type female
Display
Input SDI Detect
SD(Green), HD/3G(Yellow)
?
?
?
?
?
?
Output Electrical Specifications
?
?
?
?
Parameter
Min.
Max.
Units
Typ.
Rise/Fall time
SD-SDI : rise/fall time(20-80%)
???
???
ps
600
???
HD-SDI : rise/fall time(20-80%)
???
???
ps
100
???
3G-SDI : rise/fall time(20-80%)
???
???
ps
100
Peck to Peck Voltage Swing
SD/ HD/ 3G-SDI
720
880
mVpp
800
Overshoot/Undershoot
SD/ HD/ 3G-SDI
-10
+10
%
???
RF Input
Connector (1 Port)
75ohm, 1 x BNC type female
?
?
?
?
?
?
Output Electrical Specifications
?
?
?
?
Parameter
Min.
Max.
Units
Typ.
DC Input power
7
18
V
???
Lowest Power Consumption
???
2
W
???
Dimensions
131 x 99 x 28.4 (except connector) mm
Weight
370 g
