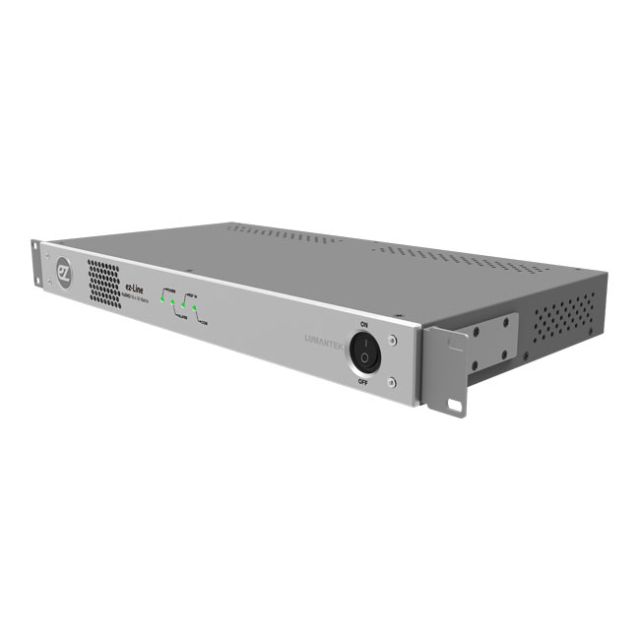

Lumantek VM16 ez-Line 16x16 Router

Lumantek VM16 ez-Line 16x16 Router
ez-Line (HD-SDI 16 x 16 Router) supports the standard HD-SDI signal and can configure HD broadcast signal input/output. Through this unit user can send sharp and clear signals. In addition to this, user can utilize this device function and use variety purposes such as splitter and selector.
Input

SDI Video Input: SD/HD/3G-SDI (BNC 75??) x16

Reference Input: B.B , TRI (BNC 75?? ) x1

Output

HD-SDI: SD/HD/3G-SDI (BNC 75??) x16Connections

Remote Control: RS-422 (RJ45)x1

Ethernet: Ethernet Support (RJ45)x1

Update: Debug (Micro-USB)x1

Electrical

Power Input: 100~240VAC @ 50/60Hz

Power Consumption: 18W(max.)

Operation Temperature: 0~40?

Physical

Dimension: 44(H) X 483(W) X 240(D)

Weight: 2.0 kg

?
