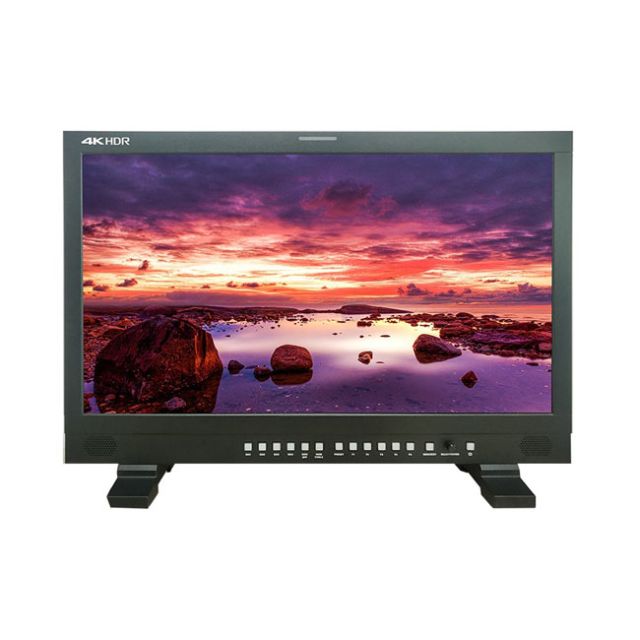

RGBlink 23.8'' UHD IPS Monitor

RGBlink 23.8'' UHD IPS Monitor
24inch 4K HDR monitor, 3840 x 2160 16:9 aspect ratio, 540nits, 98% DCI-P3 wide color
gamut, custom 3D LUT import, designed for professional production and post production workflow.
Offers the precise color reproduction and the unique and advanced features. The RMS2380U also
supports various HDR gamma curves, such as PQ, HLG, S-Log3
24 inch 4K IPS LCD Panel4K UHD(3840 x 2160) resolution, 540nits high brightness, 10bits LCD IPS panel, 178?/178? viewing angle
Wide Color GamutCovers 98% DCI-P3 color gamut, 25% larger than Rec.709
4K Signal Input Interface4 channels 12G-SDI video input and loop output, HDMI2.0 input, Thunderbolt/Type-C interface and SFP
Multi ScreenSupport multi screen modes, PBP/PAP, 3 screen and quad, monitor multiple signals at the same time
Multiple Gamut FormatsITU-R BT.2020, ITU-R BT.709, EBU, SMPTE-C, DCI-P3, Native
Support HDR/Gamma(EOTF)HLG (Hybrid Log Gamma)(1.0, 1.1, 1.2, 1.3, 1.4, 1.5)and ST.2084 Dolby Vision PQ HDR Support Sony S-log3 HDR Support normal Gamma and user Gamma LUT
SDR/HDR ComparisonSelect multi screen mode to compare the signals effect of SDR and HDR
Camera LogSupport Sony, ARRI, Canon, Panasonic and DJI Camera Log and user Log
3D LUT Color Calibration3D Look-up Table import is supported for accurate and consistent color matching between individual displays
Embedded Audio MeterSupport 16 channels of embedded audio meters, support audio abnormal alarm, select 2 channels of audio meter output
Support waveform, vector, histogramSelect Y, CB, Cr, R, G, B waveform, support any single line waveform, support vector graph and R/G/B/Y full channel histogram display
USB firmware upgrade
Gamut Warning
HeadphoneStereo Mini Jack x1
False Color
Over scan, Marker, Mono, Blue only
