VigilLink 18Gbps 2x1 HDMI/mini-DP Wall Plate HDBaseT Transmitter with Auto switching (40m, White)

VigilLink 18Gbps 2x1 HDMI/mini-DP Wall Plate HDBaseT Transmitter with Auto switching (40m, White)

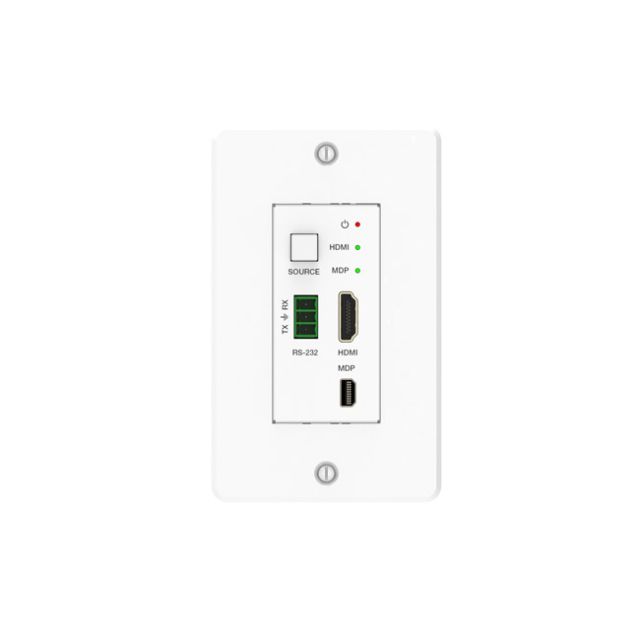

The wall plate is a 2x1 switcher and HDBaseT transmitter with HDMI and DP inputs. It features a US one-gang enclosure for Decora-style wall plate openings with interchangeable black and white wall plates and faceplates. Support video resolution up to 4K2K@50/60Hz 4:4:4. It supports bidirectional RS-232 pass-through, and the RS-232 control signal can be transmitted up to 131ft / 40m. The receiver or other HDBaseT-equipped devices remotely power the product via POE.
Features
?? Compliant with HDMI 2.0b, HDCP 2.2, and Display Port 1.2a?? Support 18Gbps video bandwidth?? Video resolution up to 4K2K@50/60Hz 4:4:4?? HDBaseT output can extend video transmission distance up to 230ft / 70m for 1080P@60 or 131ft / 40m for 4K@60 via a single CAT6/6a/7 cable?? Support 3D, HDR10, and Dolby Vision?? HDMI audio formats support LPCM, Dolby Digital/Plus/EX, Dolby True HD,DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD ?? Support HDMI and MDP input?? US one-gang enclosure for Decora-style wall plate openings?? Input signal selection supports automatic mode and manual mode?? Support POE function (only from Receiver to Transmitter)?? Available in white or black coating
Package Contents
? 1?? 18Gbps HDBaseT 70M with MDP/HDMI Wall Plate Transmitter? 1?? User Manual
