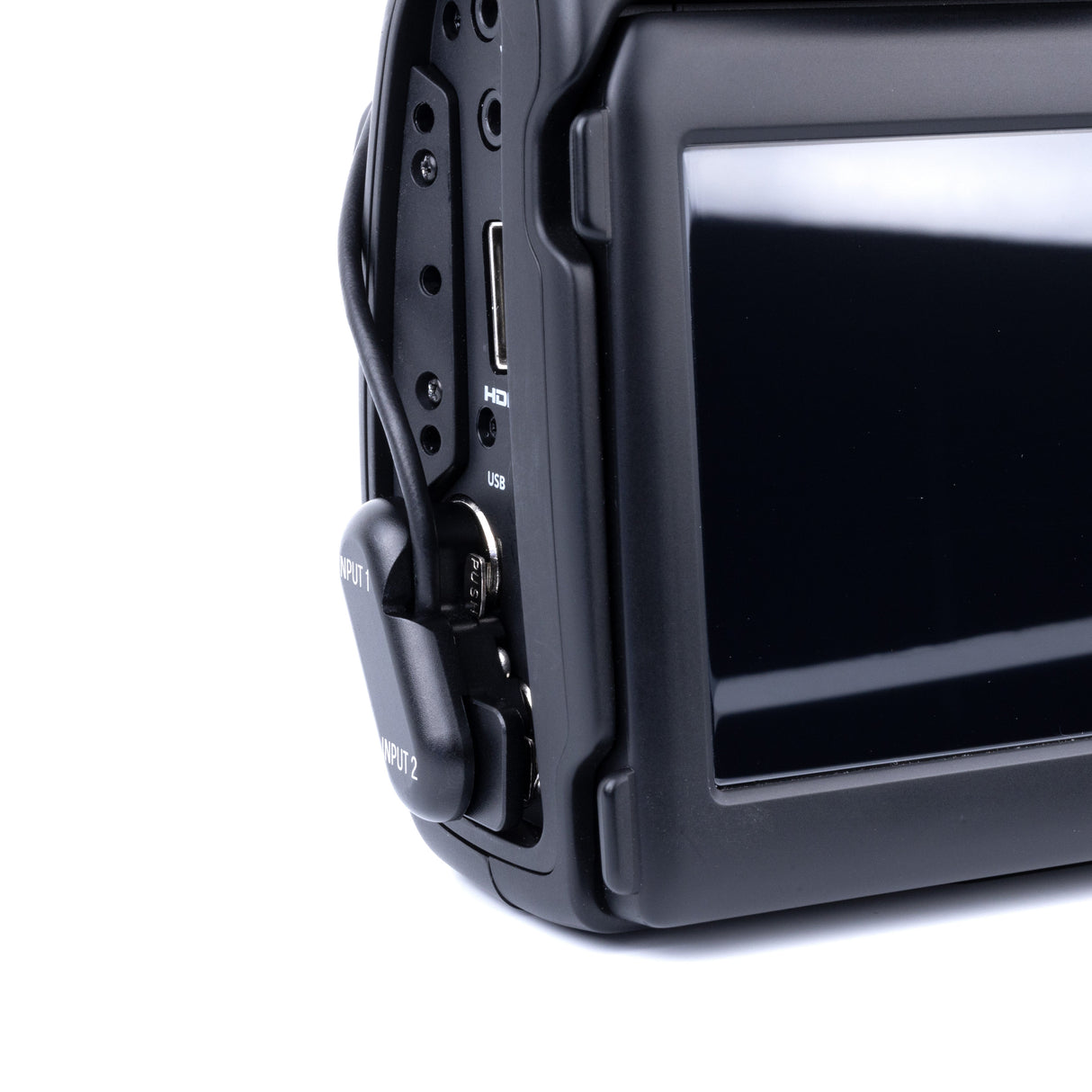

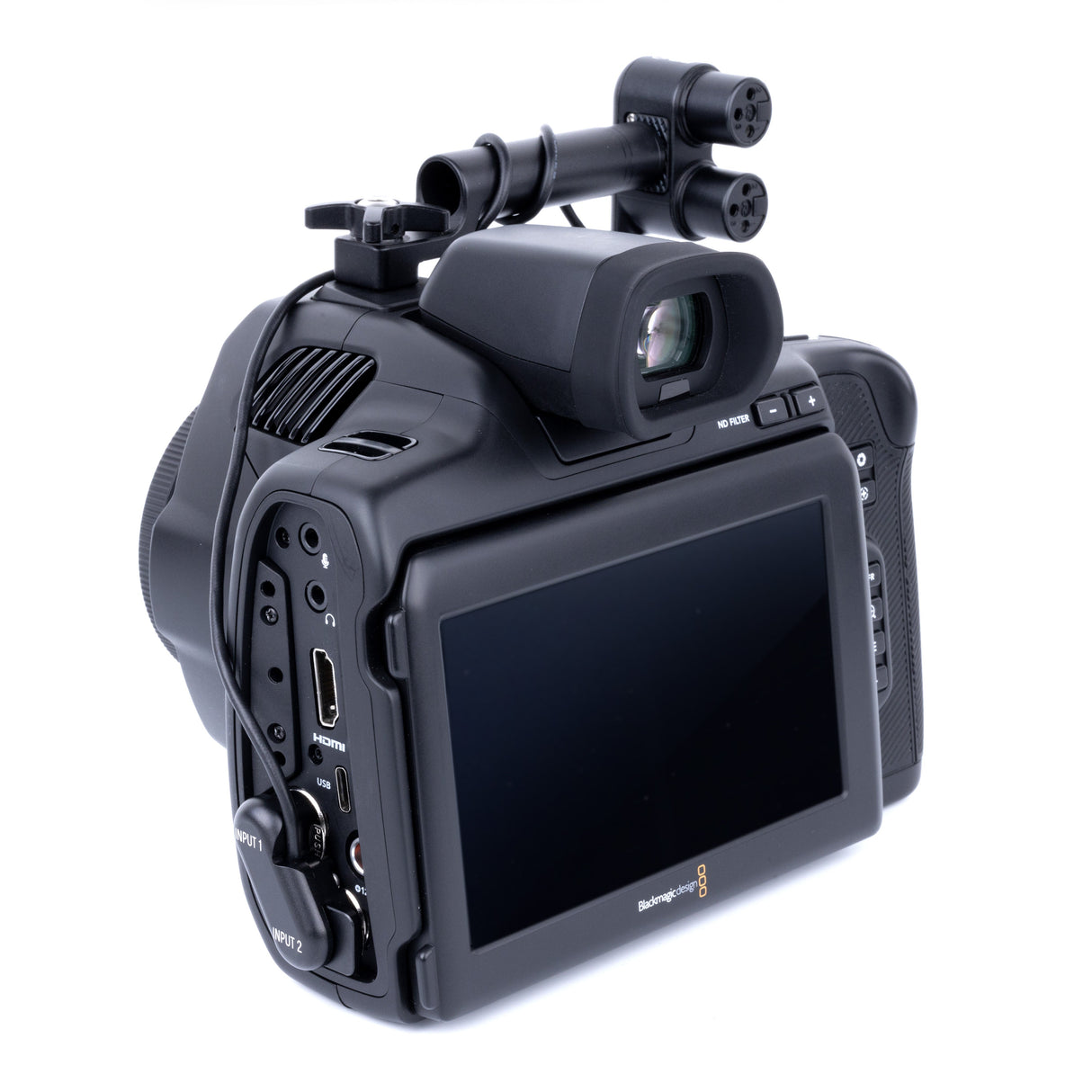

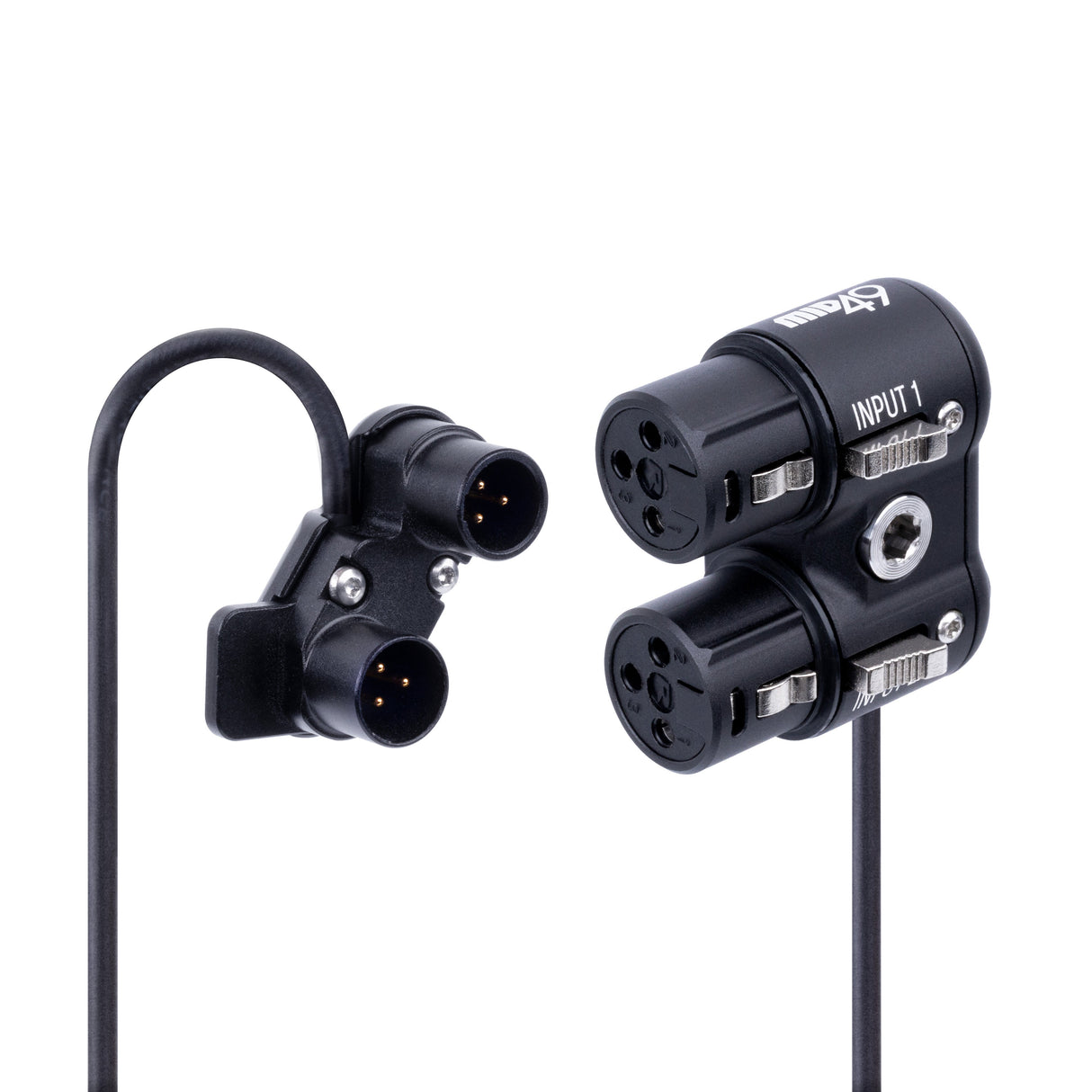

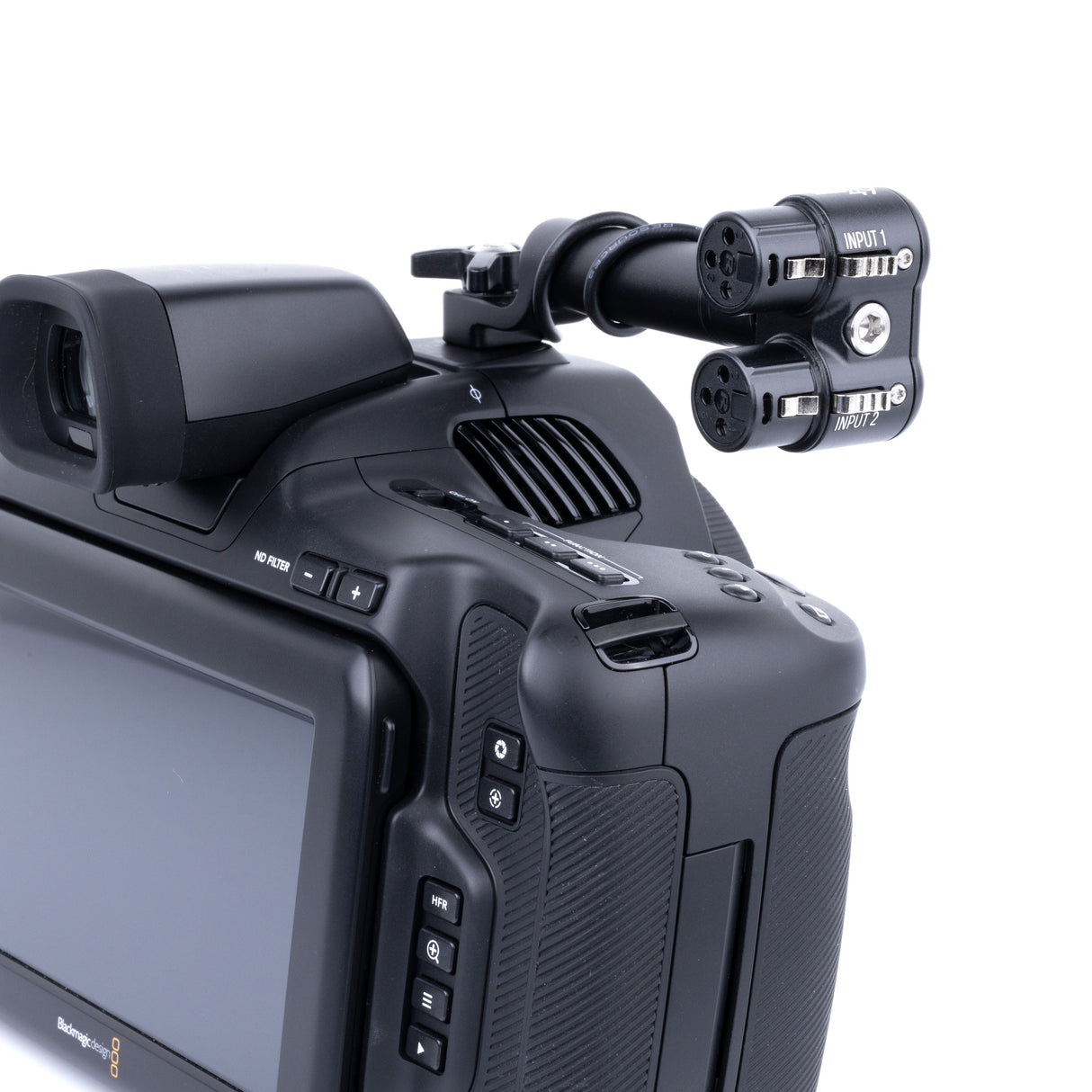

MID49's Audio Breakout AB-6 converts the two mini XLR inputs on a Blackmagic 6K Full Frame, Cinema Camera 6K Pro, or Pocket Cinema Camera 6K G2 into two standard full-size XLRs, letting these cameras accept professional microphones without an adapter cable dangling off each input. It mounts via a captive 1/4-20 screw to the camera body or a third-party cage, and its 12-inch cable with low-profile right-angle connectors keeps cabling tidy. Because it's a passive adapter, there's no power draw or electronics to add failure points on set.
- Converts 2 mini XLRs to 2 full-size XLRs: Compatible with the Blackmagic 6K Full Frame, Cinema Camera 6K Pro, and Pocket Cinema Camera 6K G2.
- Captive 1/4-20 mounting screw: Attaches directly to the camera body or a third-party cage.
- Rod-clampable via M4 threaded holes: ARRI-spaced holes accept an optional side mounting bracket, or attach to 15mm/19mm rods with a separate rod clamp.

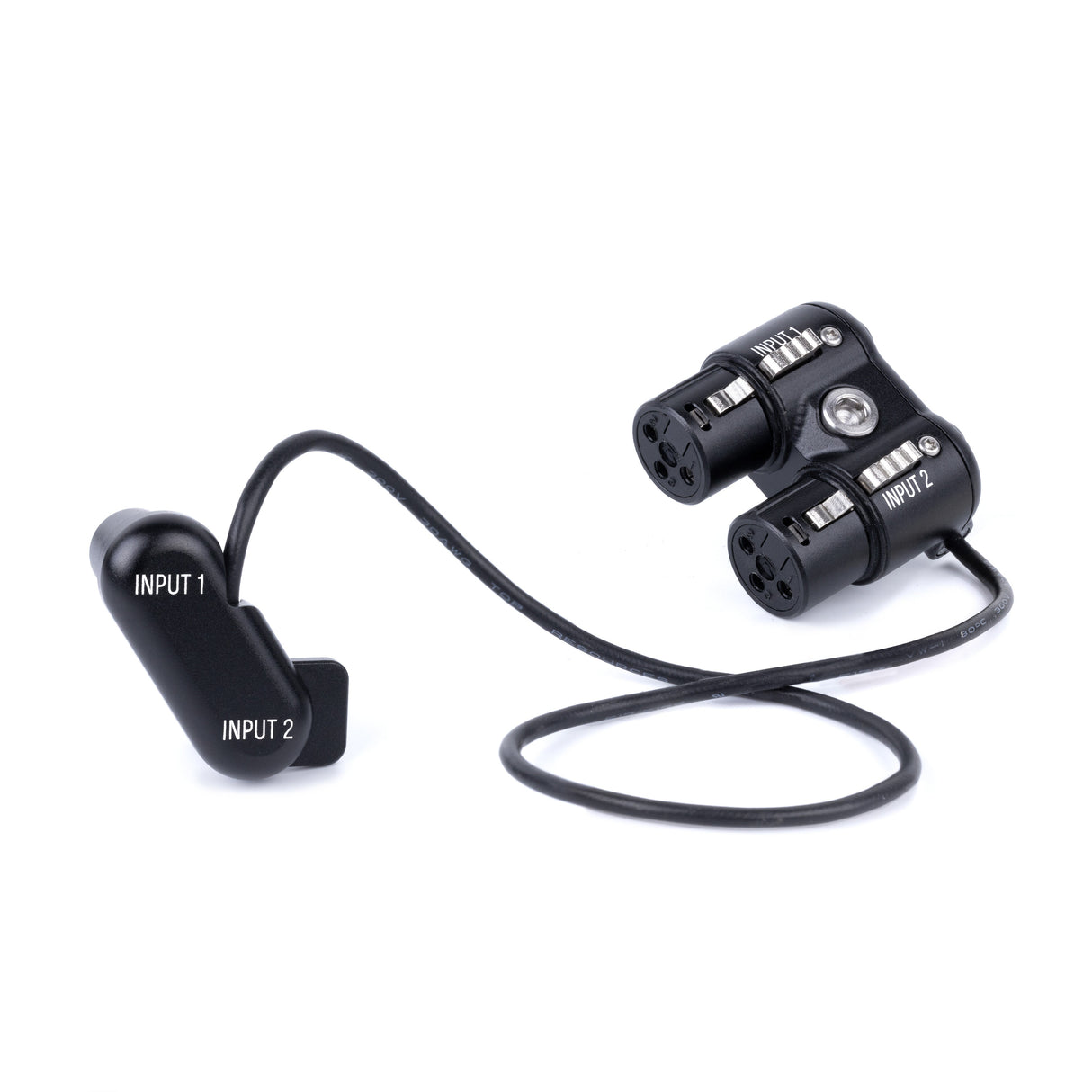

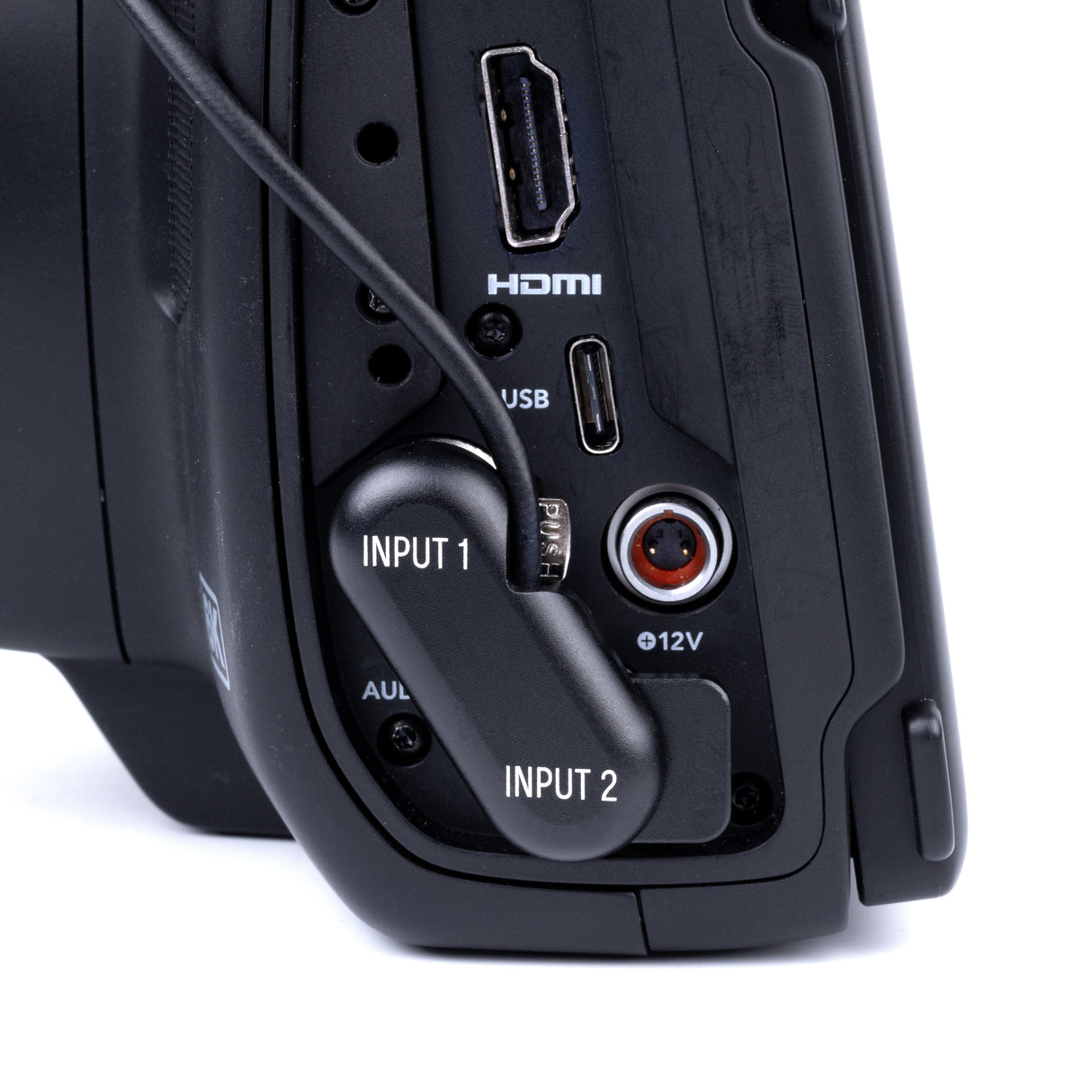

- 12-inch low-profile right-angle cable: Custom mini XLR connector keeps cabling tidy against the camera body.
- Compact and lightweight: Weighs 2.00oz (56g) with custom cable lengths available on request.
| Product Weight | 2.00oz (56g) |
| Product Dimensions (WxLxH) | 1.36 x 14.25 x 1.09in (35 x 362 x 28mm) |
