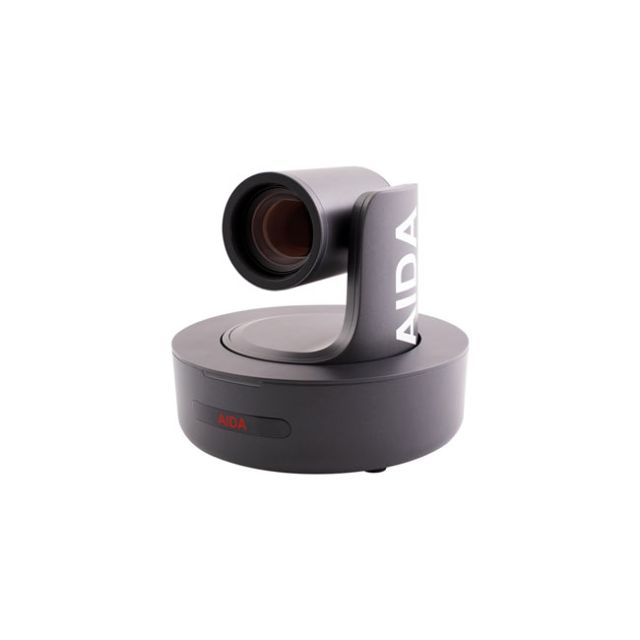

AIDA Imaging PTZ-NDI-X12 Full HD NDI Broadcast PTZ Camera

AIDA Imaging PTZ-NDI-X12 Full HD NDI Broadcast PTZ Camera Capturing The Unreachable with NDI The PTZ-NDI-X12 is AIDAs first camera to utilize NDIHX2 technology. The camera features Newteks NDIHX2 to help ease production with seamless video transfer over almost any existing network infrastructure. With integrated RS232 and VISCA over IP camera control, this camera is compatible with most IP based controllers, simplifying existing workflows with better cable management. The camera features traditional multi video format outputs such as 3G-SDI, HDMI, USB 3.0, as well as online video outputs RTSP/RTMP. Our cameras cost effective approach makes professional grade PTZ cameras, at the fraction of the price. NDIHX2, NewTeks innovative Network Device Interface technology, is a royalty free standard enabling IP video workflows across Ethernet networks. NDIHX2 is a bi-directional standard that allows video systems to identify and communicate with one another over IP, and to encode, transmit, and receive multiple streams of broadcast-quality, low latency, frame-accurate video and audio in real time. The NDIHX2 encoding algorithm is resolution and frame rate independent, supporting up to 4K and beyond, as well as multi-channel, floating-point audio up to 16 channels and beyond. NDIHX2 also includes tools to implement video access and grouping, bi-directional metadata, tally, and more. MAIN FEATURES NDIHX2 streaming capable for low latency video streaming and PTZ control over NDIHX2 Protocol. Full HD Progressive Scan sensor captures sharp and vivid color under different light conditions. Advanced digital image processor provides vivid and detailed images with full access feature sets. Motion-compensated temporal noise reduction filter leads to effective noise reduction for motionvideo without blur. 3G/HD-SDI, HDMI, RJ-45, USB 3.0, and USB 2.0 for versatility and seamless video performance. Power Optical Zoom capability up to 12X. Compatible with other industry leading products, conforming with SMPTE 424M/292M standard. Auto White Balance and shutter speed provides the optimized performance in a variety of situations. Built-in OSD controls for customizable image settings. Versatile and compact. SPECIFICATIONS Video Image Sensor 1/2.5" Progressive CMOS Effective Pixels Horizontal: 1920, Vertical: 1080 Pixel Size 2.13 m x 2.13 m Resolution 1080p & 1080i: 1920 x 1080 Resolution/Rate 1080 60p/59.94p/50p/30p/29.97p/25p/24p/23.98p1080 60i/59.94i/50i720 60p/59.94p/50p/30p/29.97p/25p IP Rate 1920 x 1080 @ 1~601280 x 720 @ 1~601024 x 576 @ 1~60620 x 360 @ 1~60 Output HD-SDI/3G-SDIHDMIRTSP / RTMP / NDIHX2USB 3.0 & 2.0 Color Space 4:2:2 (YCbCr) 10bit Min. Illumination 0.1Lux Function White Balance Auto, Manual, Auto Tracking, One Push, Indoor, Outdoor Focus Auto, Manual Shutter Speed 1 to 1/10,000 Sec. Lens Lens 12X HD Optical Zoom, F1.5 ~ F3.0 PTZ Pan/Tilt Range Pan: 340, Tilt: +90 to -30 Pan/Tilt Speed Pan: 0 to +120/s, Tilt: 0 to +80/s, Presets 128 Positions Field of View 72.5 Standard SMPTE SMPTE 292M, SMPTE 424M IP Protocol TCP/IP, RTSP/RTMP Physical Camera Control Protocol: VISCAInterface: RS-232C IN & OUT, RJ-45Remote Controller Operation Temp 32 F - 104 F Dimension 155mm x 160m x 170mm / 6.10" x 6.92" x 6.69" Weight 1.35kg / 2.97lbs Power 12VDC (+9 - +15VDC)PoE+
