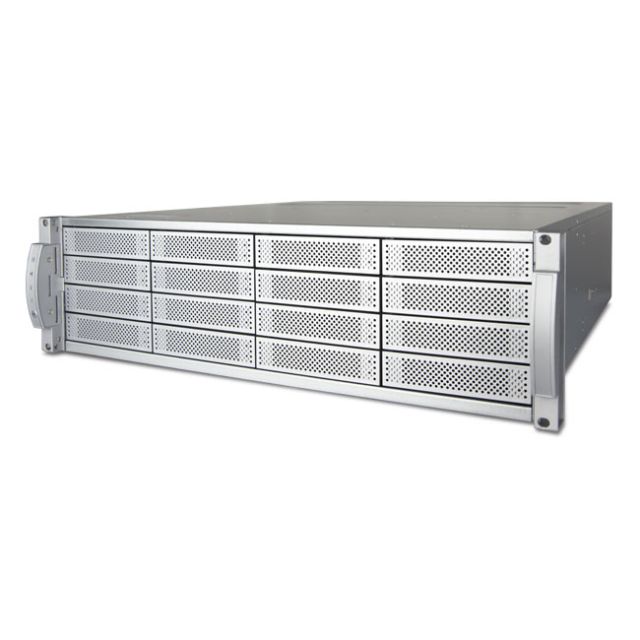

Accusys A16T3-Share External Thunderbolt 16 Bays RAID System
Performance. Sharing. Capacity. All ready.
Powerful
Leveraging new blazingly-fast Thunderbolt 3 technology, A16T3-Share comes with scalable capacity, unprecedented speed performance, and best of all: Being able to share to as many workstations as needed.
2600MB/s for 8K workflow
A16T3-Share unleashes the power of Thunderbolt 3 technology to reach the extraordinary speed of 2600MB/s in a single unit.
Concurrent workflow via sharing
A16T3-Share is fully compatible with both MAC and Windows. With 1 PCIe and 4 Thunderbolt 3 ports, A16T3-Share allows 5 editors to share content in real-time. Work concurrently and collaboratively to ensure projects are delivered on time and on budget!
Expand as You Need
A16T3-Share is equipped with 4 Thunderbolt 3 ports, and this can be expanded to 8 ports - by pairing two A16T3-Share devices using the T-Share Expansion feature. This allows users to reach storage capacities over 1 Petabyte (1792TB) of data, by connecting extra JBOD systems.
T-Pairing at 3000 MB/s
T-Pairing doubles the transfer bandwidth by distributing data through two Thunderbolt cable connections between workstations and T-Share storage. Moreover, with T-Pairing pre-installed in the driver, no additional cost will be incurred.

Technical Specifications

System Type: 16-bay Rackmount RAID system
Interface: Thunderbolt 3 * 4, PCIe 3.0 *1
Data Transfer Rate: Thunderbolt 3 : 40 Gb/s, QSFP : 32 Gb/s
Disk Interface: SAS / SATA * 16
Disk Type: 3.5" / 2.5" / SSD
RAID Level: 0, 1, 5, 6, 0+1, JBOD
Cache Memory: 2G DDRlll 1866 with ECC-protected
JBOD Expansion: JBOD * 3
T-Share Expansion: Thunderbolt 3 * 8, JBOD * 6
Power Supply: Dual 400W PSU (Redundant)
Fans: 12x12cm redundant cooling fans
RAID Controller Functions

Online RAID Set Expansion and RAID LEVEL Migration
Online bad block data recovery and reallocation
Online disk scrubbing with data refresh and parity
Disk health monitorning by S.M.A.R.T
Array Roaming and Drive Traveling
Mirror Snapshot for fast backup and restore
Disk Lag Proof Technology to guarantee disk timely response
Equalization Mode to smooth the performance of sequential I/Os and reduce large fluctuation

Management

Java-based RADIGuard X GUI
Event log saving in text file for quick trobleshooting
Event notification by email (SMTP)
LED indicator for RAID & disk drives status in front
400W (Redundant). 110V~240V power supply
Two 12cm x 12 cm Fan with Smart Fan Control feature

Dimensions: L: 567mm, W:447mm, H: 131mm
Weight: 19.4 kg
