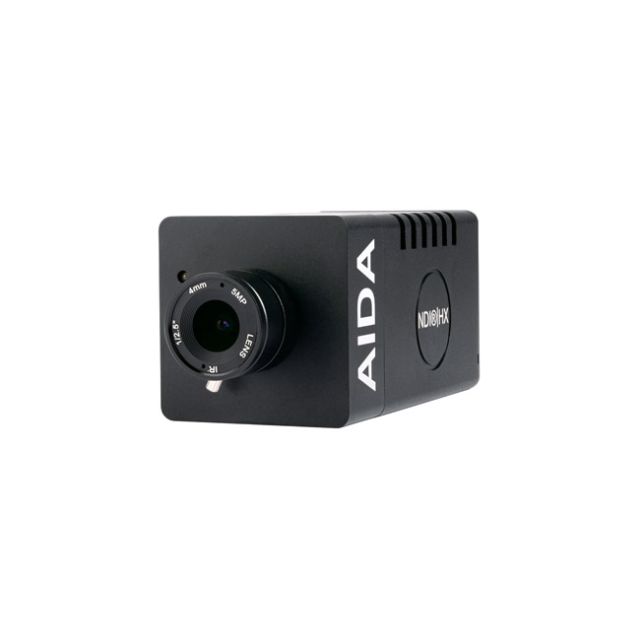

AIDA Imaging FHD NDI®|HX/IP/SRT/3G-SDI PoE and IP Control POV Camera

AIDA Imaging FHD NDI®|HX/IP/SRT/3G-SDI PoE and IP Control POV Camera The HD-NDI-200 formula, now with 3G-SDI IP infrastructure can be daunting.. but don't be scared! The HD3G-NDI-200 introduces an easier, effective solution that brings any SDI workflow that new IP connectivity and NDI! Boasting a familiar form factor and performance like the HD-NDI-200, the HD3G-NDI-200 brings NDI HX and 3G-SDI simultaneously. So no need to sacrifice the 3G-SDI cable, just sacrifice those serial and power cables for an easier, PoE+ connections for power, control and video over 1 ethernet cable! MAIN FEATURES Full-HD 1/2.8" Progressive Scan CMOS sensor capable of 1080 60p NDI® HX and 3G-SDI video. Accessible Web UI to stream directly to social media platforms and control image parameters over IP. Versatile and discreet design perfect for sleek, multi-leveled image capturing in most scenarios. OSD breakout cable provides power or control over serial RS485 communication. Flawlessly relays multi-channel embedded audio via NDI® HX2 Perfectly suited for upgrading existing 3G-SDI workflows to IP / NDI® HX capabilities. SPECIFICATIONS VIDEO Image Sensor 1/2.8" Progressive CMOS Effective Pixels Horizontal: 1920, Vertical: 1080 Pixel Size 2.9m (H) x 2.9m (V) Resolution 1080p, 1080i, 720p Resolution Rate 1080 60p/59.94/50p/30p/29.97p/25p 24p/23.98p 1080 60i/59.94i/50i 720 60p/59.94p/50p/30p/29.97p/25p Output 3G-SDI, RJ45, NDI® HX2 IP Rate 1920 x 1080 @ 3~60 1280 x 720 @ 3~60 1024 x 576 @ 3~60 620 x 360 @ 3~60 Color Space 4:2:2 (YCbCr) 10bit LENS Lens C/CS Mount (Default 4mm HD Lens) AUDIO Input 3.5mm TRS Stereo Audio Port Sample Rate 16/24/32 Bits PHYSICAL Camera Control Protocol: VISCA RS485, VISCA Over IP Control: OSD Button or Web UI Operation Temp 32°F - 104°F Dimension 54mm x 54mm x 127mm / 2.125" x 2.125" x 5" (With default 4mm Lens) Power 12VDC (+9 - +15VDC)/ POE What's In The Box 1x HD3G-NDI-200 camera 1x I/O Breakout Cable 1x DC 12v Power Supply & Sockets Adapter 1x 4mm Megapixels Lens(Pre-Installed) 1x USB Cable 1x C-Mount Cap Adapter 1x Sensor Cap
