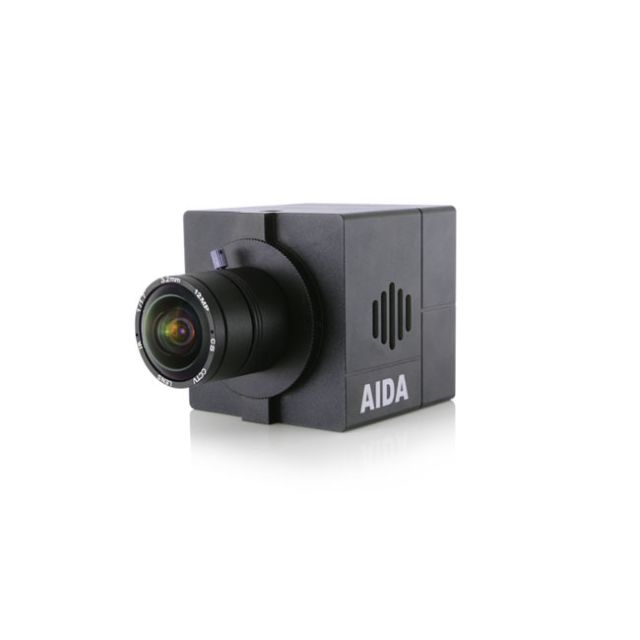

AIDA Imaging UHD 6G-SDI EFP Camera

AIDA Imaging UHD 6G-SDI EFP Camera
Retaining the familiar form factor and durable design of the original AIDA GEN3G cameras, the UHD6G-200 brings the expanded control sets and increased video performance. The UHD6G-200 features an advanced 4K UHD Progressive Scan CMOS image sensor capable fo 4K (3840??2160) 6G-SDI output for Industrial and Broadcast applications realizing 4K video imaging with wide dynamic range. Designed for versatility with a user-interchangeable C to CS mount lens allows the UHD6G-200 to be used in nearly any kind of workflow.?
MAIN FEATURES

4K UHD 1/2.5 Progressive Scan CMOS sensor captures sharp and vivid UHD video even under very low light conditions.
Advanced digital imaging processor provides vivid and detailed images by utilizing Dynamic Range, Auto White Balance, and Noise Reduction.
Superb motion-compensated temporal noise reduction lter for motion video without blurring.
OSD control breakout cable with audio input and RS-485 for remote communication.
Flawlessly relays multi-channel embedded audio via SDI
Interchangeable lens design compatible with CS and C mount lenses.
Perfectly suited for broadcast, pro audio/video, and security.
Conforming with SMPTE 292M, 424M and 2081-10
Versatile, compact, and rugged design.

SPECIFICATIONS

Video

Image Sensor
1/2.5" Progressive CMOS

Sensor Size
8.365mm X 6.615mm (16:9)

Effective Pixels
Horizontal: 3840, Vertical: 2160

Pixel Size
1.62 ?m (H) x 1.62 ?m (V)

Resolution
3840 x 2160, 1920 x 1080, 1280 x 720

Resolution/Rate
2160p 30/29.97/25/241080p 60/59.94/50/30/29.97/25/241080i 60/59.94/50720p 60/59.94/50/30/25

Output
HD/3G/6G-SDI (BNC)

Color Space
4:2:2 (YCbCr) 10bit

Function

White Balance
AWB / AE / AF

Exposure
Full Auto, Bright, Shutter Priority, Iris Priority, Manual

Others
WDR, DIS (Digital Image Stabilization), 2D/3D Noise Reduction,Digital Slow Shutter, Black Level Compensation, Flicker Detection

Lens

Lens
C/CS Mount

Audio

Input
3.5mm Analog Audio Jack over I/O Cable

Sample Rate
16/24/32 Bits

Standard

SMPTE
SMPTE 292M, SMPTE 424M, SMPTE 2081-10

Physical

Camera Control
RS-485OSD Button

Operation Temp
15?F - 120?F

Dimension
49m x 49mm x 71mm / 1.92" x 1.92" x 2.79"

Weight
170g / 0.37 lbs

Power
12VDC (+9 - +15VDC)
