Apantac HDMI 1.3 to SDI Converter Module and Rear Module with DashBoard Interface for openGear Frame

Apantac HDMI 1.3 to SDI Converter Module and Rear Module with DashBoard Interface for openGear Frame
Key Features

Converts HDMI 1.3 to SDI
DashBoard Interface Support
Optional SNMP Support
HDMI Input with Active HDMI Loop Output
Two SDI Outputs
Stereo Analog Audio Monitoring Output
Manages HDCP
Supports Four Channels of Embedded Audio
Minimum Processing Delay
openGear Rear Module

?

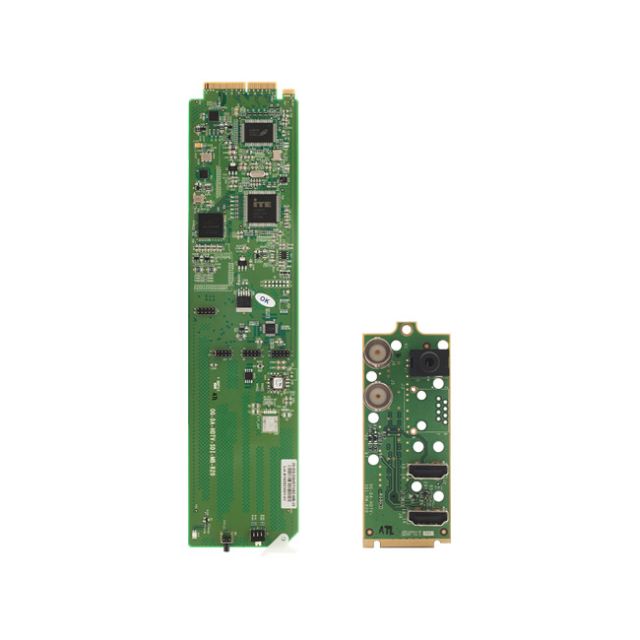

This?Converter Module Set?from?Apantac?includes a OG-DA-HDTV-SDI-II-MB card and a Rear Module. This card converts HDMI 1.3 to SDI and supports DashBoard interface and optional SNMP. It features an HDMI input?with an active HDMI loop output, two SDI outputs, and manages HDCP. It supports four channels of embedded audio with minimum processing delay. This set comes with a rear module connector, which occupies two slots in the openGear frame.

Minimum processing delay without scaler or frame rate/resolution conversion
openGear rear module for OG-DA-HDTV-SDI-II-MB
Occupies two slots in the openGear frame
