Arriflex SR Battery Adapter
Arriflex SR Battery Adapter
Key Features
Description
Description

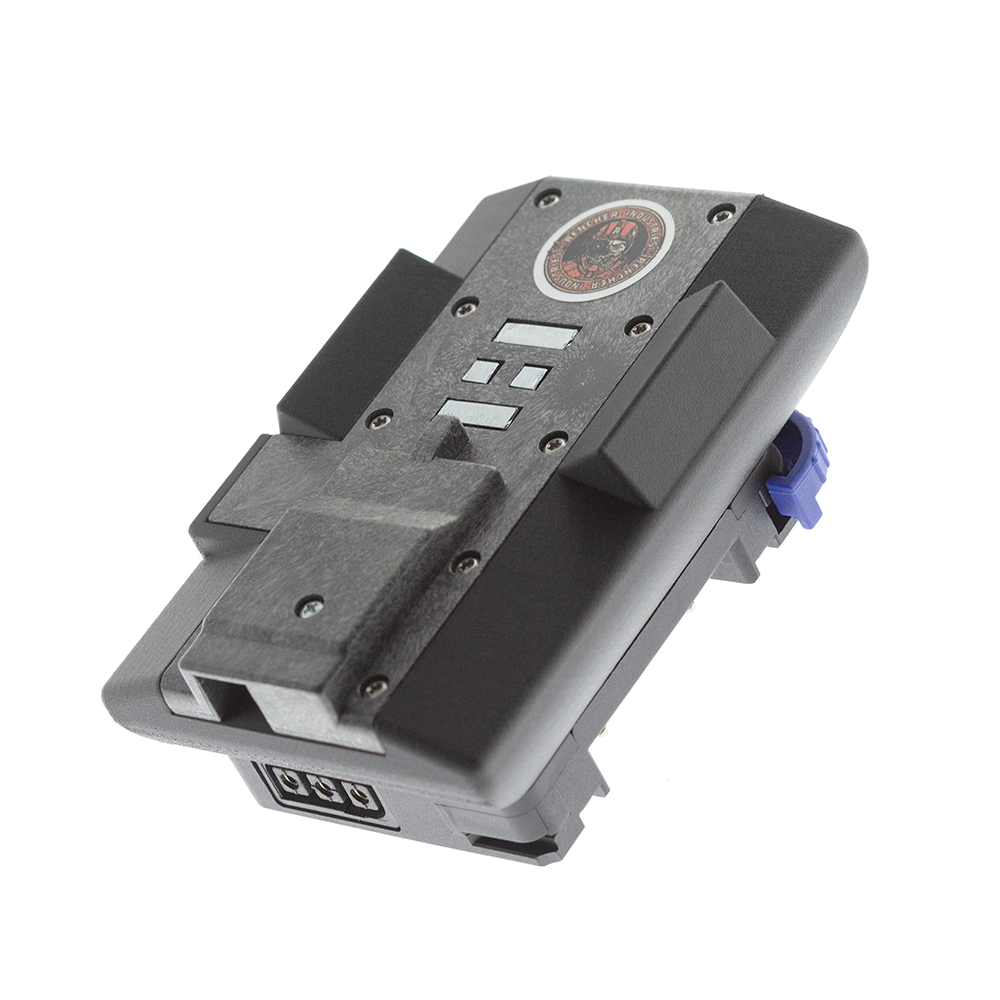

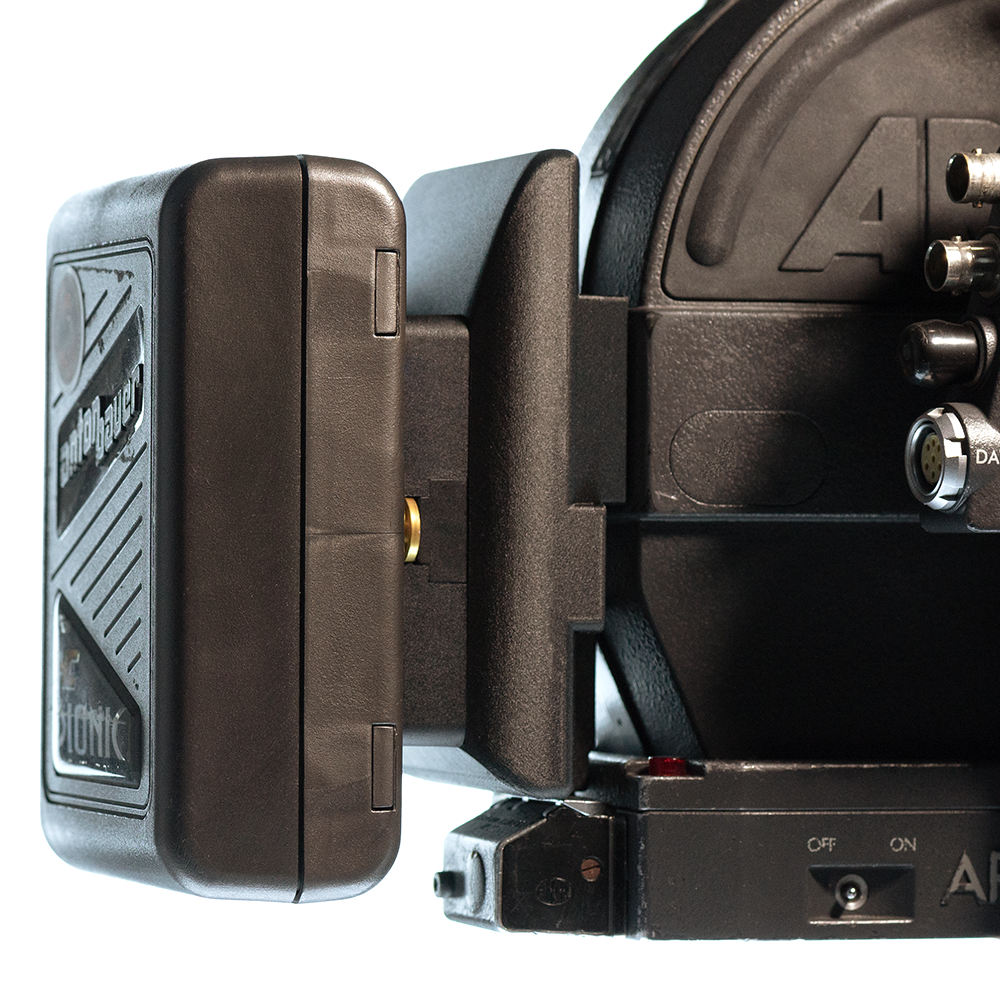

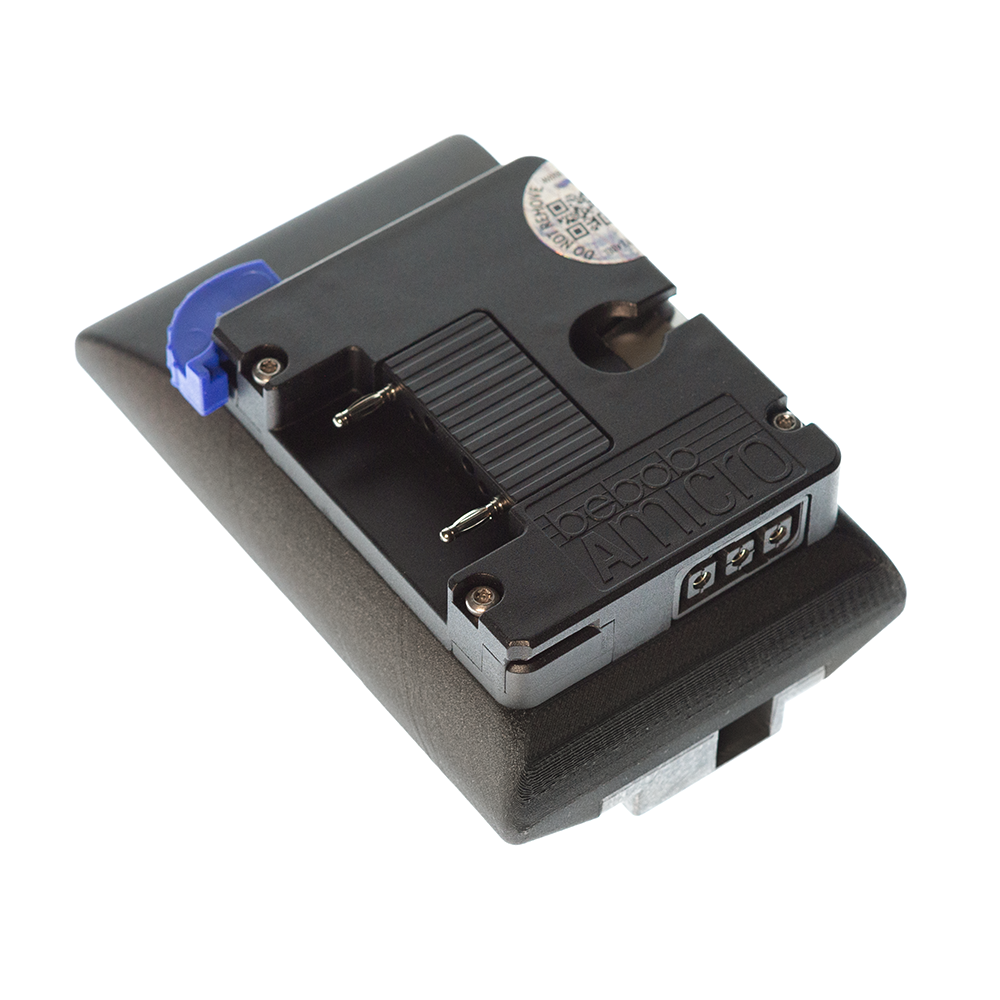

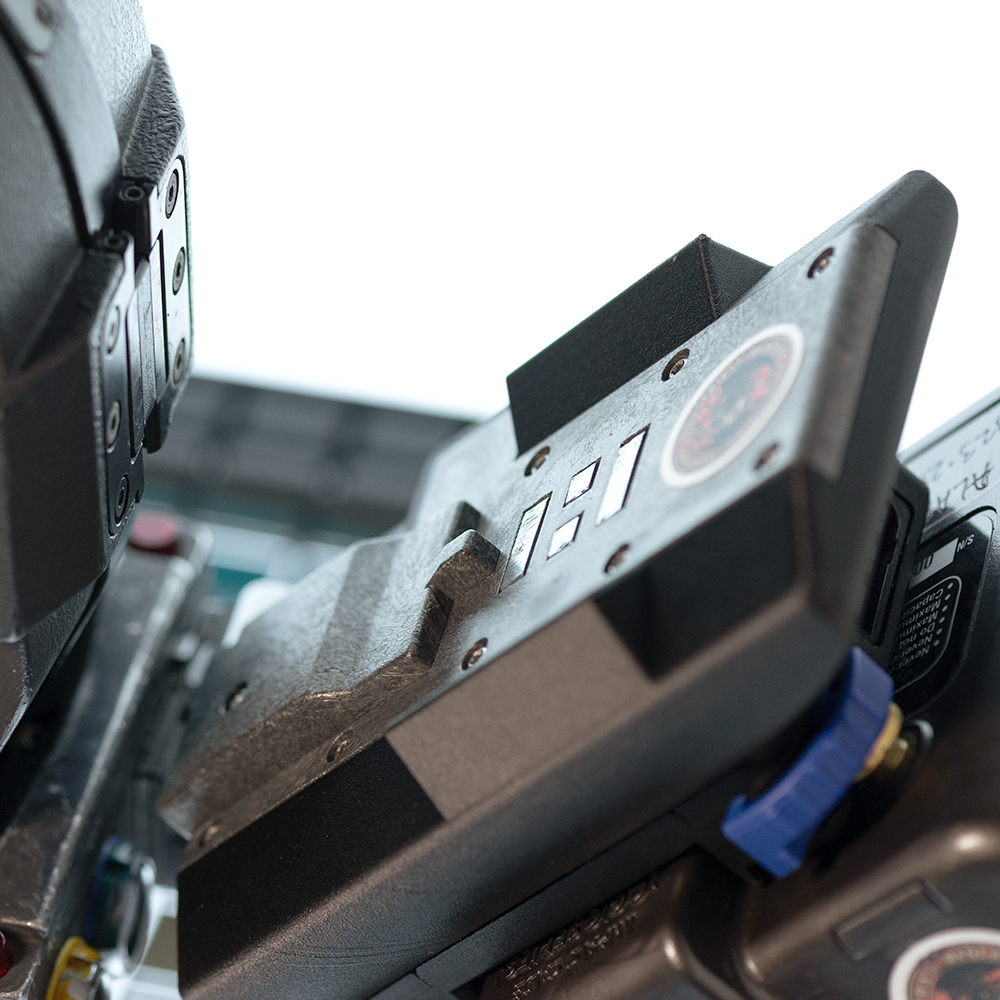

The Arriflex SR Battery Adapter for Arri SR1/SR2 and SR3 regulate voltage to 12V and 24V, respectively, from standard Gold Mount or V-Mount batteries. The adapter interfaces with the original onboard battery mount and features two unregulated "twister" D-Taps outputs on the battery plates.
Features
- SR3 Adapter — Steps-up 14.4V nominal batteries (2.9V-24V) to 24V, 2A
- SR1/SR2 Adapter — Steps-down 14.4V and 24V nominal batteries (13.3V-50V) to 12V, 4.5A
The adapter replaces the original SR battery and requires an on-board battery adapter to be installed on the camera. If you do not have an OEM on-board battery adapter, we recommend this adapter from Lentequip.
This adapter is not recommended for high frame rates, as it uses more power than this adapter can provide. For high-speed applications, we recommend our LockON Battery Booster.
Customizations can be made to accommodate 24 V batteries. Please contact us to enquire.
*Batteries not included*
All Rencher Industries products that use printed parts carry a 5-year warranty on the printed material. If your printed part warps, cracks, or fails for any reason, we will replace the defective printed part at no cost.
