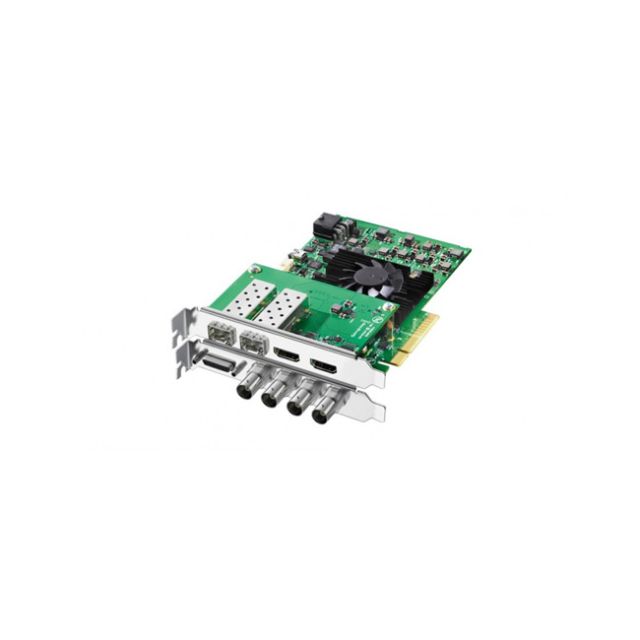

Blackmagic Design DeckLink 4K Extreme 12G

The DeckLink 4K Extreme 12G is Blackmagic's top-tier capture and playback card, built for feature film, commercial, and VFX work needing full-frame DCI 4K at up to 60fps with 8, 10, or 12-bit RGB support and stereoscopic 3D. Its mezzanine card design adds HDMI in/out on a second daughter card plus sockets for two optical fiber modules, letting you run Dual Link optical SDI at up to 12G speeds instead of standard BNC copper for dramatically longer cable runs. DaVinci Resolve users benefit from simultaneous capture and playback, so you can grade video live on set and output it to a monitor in real time while capturing from camera.

• Two 12G-SDI in and out: SD, HD up to 1080p60, 2K, Ultra HD, and DCI 4K (4096x2160) at up to 60fps.
• HDMI 4K in/out plus analog I/O: component analog, AES/EBU balanced and RCA unbalanced audio in/out via included breakout cable.
• Dual optical fiber module sockets: adds Dual Link optical fiber SDI at up to 12G-SDI speeds for much longer cable runs than copper BNC.
• Simultaneous capture and playback in DaVinci Resolve: grade live on set and output to an on-set monitor in real time.
• Sony-compatible RS-422 deck control: genlock/tri-sync input, free developer SDK and Media Express software for Mac, Windows, and Linux.
