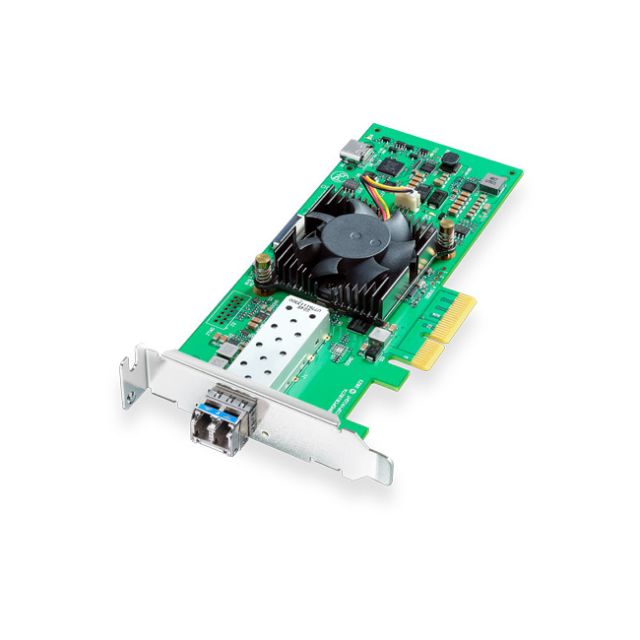

Blackmagic Design DeckLink IP HD Optical

Blackmagic Design DeckLink IP HD Optical The Perfect Capture and Playback for 2110 IP Broadcast Systems. DeckLink IP cards are the easiest way to capture and play back video directly into 2110 IP based broadcast systems. DeckLink IP cards support multiple video channels plus each channel can capture and play back at the same time. You can even use DaVinci Resolve for 2110 IP based broadcast editing workstations.

---

• This means: you can build racks of servers generating broadcast graphics, virtual sets, or GPU based AI image processing, all directly integrated into 2110 IP broadcast infrastructure.
• You can: even use DaVinci Resolve for 2110 IP based broadcast editing workstations.
• DeckLink IP: features a high speed PCIe connection so it works on the latest Mac Pro, Windows and Linux computers.
• DeckLink IP: HD Optical DeckLink IP features 3 channels of capture and playback to 2110 IP broadcast systems via an SFP based optical fiber Ethernet connection.
• It supports: all 720p, 1080i and 1080p standards up to 1080p60.
• It also: keeps video sources in sync using a common PTP clock.
• DeckLink IP: supports SMPTE-2110-20 uncompressed video, SMPTE-2110-21 traffic shaping/timing, SMPTE-2110-30 audio and SMPTE-2110-40 for ancillary data.
• The big: advantage of SMPTE 2110 is all video, audio and ancillary data are transported independently over the network.
