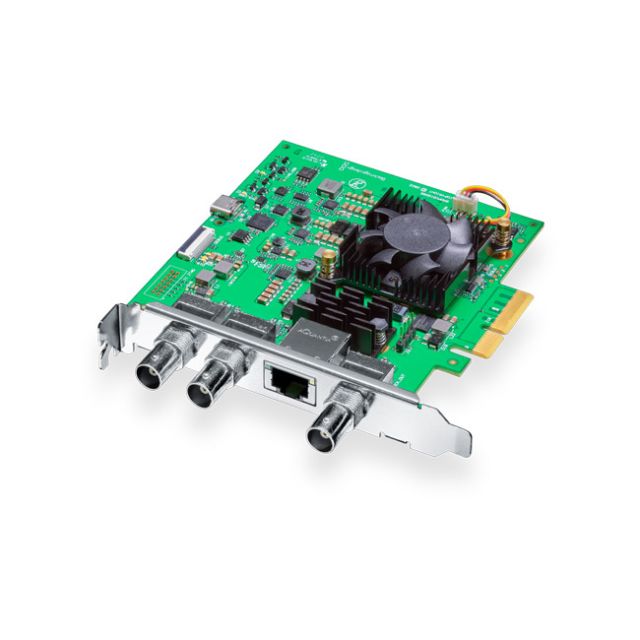

Blackmagic Design DeckLink IP/SDI HD

The Blackmagic Design DeckLink IP/SDI HD is a capture and playback card built to bridge traditional 3G-SDI broadcast equipment with SMPTE 2110 IP-based infrastructure. It's aimed at broadcast engineers building or transitioning a facility to IP video who need existing DeckLink-compatible software to keep working unchanged.

• 2 Capture/Playback Channels: Connects via RJ45 Ethernet for 2110 IP and 3G-SDI simultaneously, supporting 720p, 1080i, and 1080p up to 1080p60.
• SMPTE ST2110 Compliant: Supports ST2110-20 video, -21 traffic shaping, -30 audio, and -40 ancillary data, synced to a common PTP clock.
• Built-In Video Firewall: Isolates the Ethernet port to video and audio only, using onboard frame buffers rather than direct network access.
• 4-Lane PCIe Connection: Low-latency, accurately synchronized capture and playback on compact or low-cost computers.
• 10-Bit Broadcast Quality: Supports Apple ProRes, DNxHD, and 10-bit uncompressed capture and playback.
• NMOS Protocol Support: IS-04 discovery and IS-05 connection management let it act as part of a virtual router with Videohub Smart Control.
• Works with DaVinci Resolve and Other NLEs: Also compatible with Final Cut Pro, Media Composer, Premiere Pro, Fusion, and streaming software.
