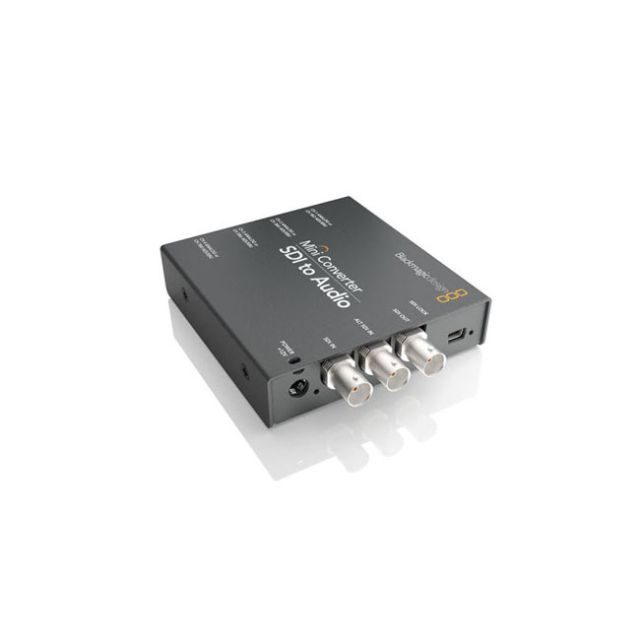

Blackmagic Design Mini Converter - SDI to Audio

The Blackmagic Design Mini Converter SDI to Audio de-embeds audio directly from any SDI video connection, built for facilities that need to route audio to mixers, decks, or monitors without touching the video signal. It automatically switches between SD and HD formats as the input changes, aimed at engineers who don't want to manually reconfigure the converter between sources. A redundant SDI input and loop-through output make it suited to mission-critical broadcast and live event use.

• 4 channels analog or 8 channels AES/EBU digital audio: De-embeds audio from any SDI video connection for output to mixers, decks, or monitors.
• Automatic SD/HD switching: Changes over automatically between standard and high definition formats as the input changes.
• Redundant SDI input: Automatically switches to a backup input cable if the main input is lost, for mission-critical reliability.
• Loop-through SDI output: Connects to another Mini Converter to de-embed additional audio channels from the same signal.
• Broad video standards support: Includes NTSC, PAL, 1080i/59.94, 1080i/50, 1080psf/23.98, 1080psf/24, 720p/59.94, and 720p/50, with new formats addable via USB.
