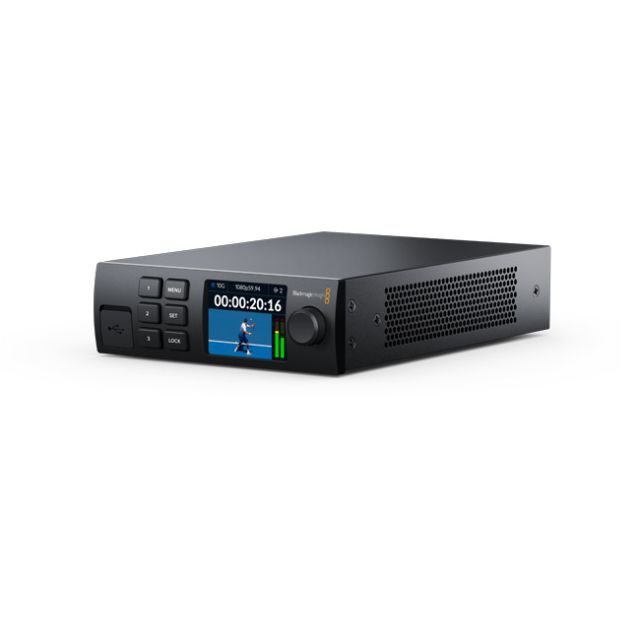

Blackmagic Design 2110 IP Converter 3x3G

The Blackmagic 2110 IP Converter 3x3G converts three separate 3G-SDI devices into SMPTE 2110 IP video over a single 10G Ethernet connection. Its rack-mountable design with a front-panel LCD is built for integrating SDI equipment directly into IP broadcast systems.

• 3 independent SDI-to-IP channels: 10G Ethernet handles 3 separate video channels at once, each with independent SDI input and output, supporting up to 6 different SDI devices.
• SMPTE ST2110 compliance: Supports SMPTE-2110-20 video, -21 traffic shaping, -30 audio, and -40 ancillary data, with automatic SDI re-sync to the 2110 PTP clock.
• Front panel LCD monitoring: Color LCD provides live video monitoring, network diagnostics, and IP routing menus for each SDI output.
• NMOS support for virtual routing: Supports IS-04 discovery and IS-05 connection management so 2110 devices can operate together as a virtual router.
• All SD/HD formats up to 1080p60: Supports 525i59.94, 625i50, and all 720p/1080i/1080p formats up to 1080p60, with true 10-bit video quality and SDI re-clocking.
• Redundant power and rack mounting: Built-in international AC power plus PoE+ over the 10G Ethernet port, with a Universal Rack Shelf supporting up to 3 units side by side.
