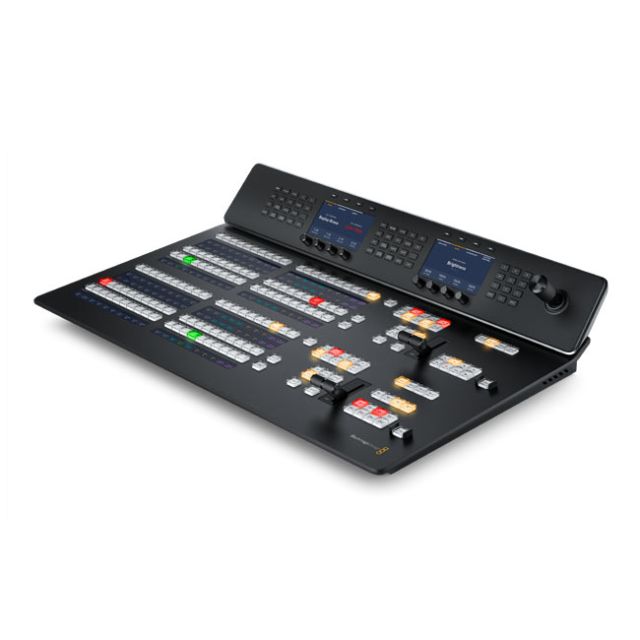

Blackmagic Design ATEM 2 M/E Advanced Panel 20

The ATEM 2 M/E Advanced Panel gives an ATEM Constellation switcher a true broadcast-style hardware control surface, with 2 M/E rows of 20 input buttons each and independent system control LCDs so operators aren't working blind through software menus. Each row includes its own select bus for routing sources to aux outputs, a joystick for precise DVE positioning, and a t-bar fader for manually riding transitions during live performances. Dedicated hardware buttons for transition types, keyer control, and macros mean the whole operation happens by feel, which matters when the operator needs to watch the output rather than a screen.

• 2 M/E rows, 20 input buttons each: independent system control LCDs and select bus per row; each row can control up to 4 M/Es on larger switchers.
• Program/preview switching: select on preview bus, then CUT or AUTO to go live, the same 2-step workflow large broadcasters use.
• Joystick and t-bar fader: precise 3-axis DVE positioning and manual transition control for live performance work.
• Dedicated transition and keyer controls: hardware buttons for mix, dip, wipe, and DVE transitions, plus fine keyer adjustment while watching live video.
• Built-in macros and Ethernet control: trigger custom macros at the push of a button; connects to the switcher over standard Ethernet for remote operation.
