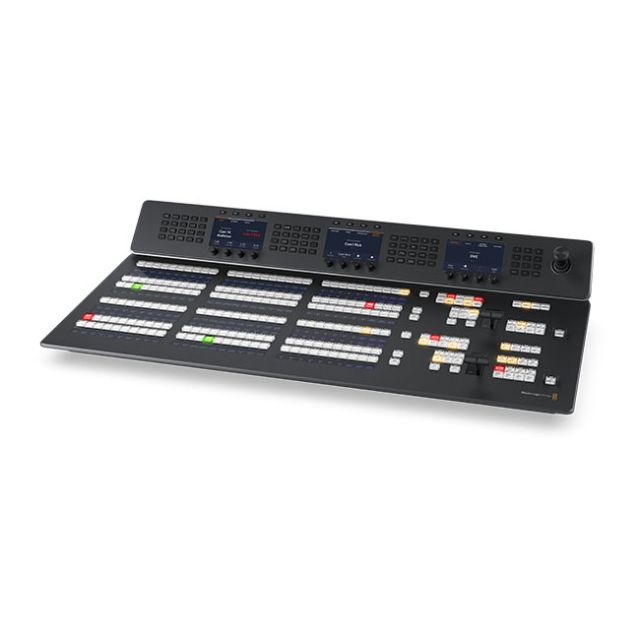

Blackmagic Design ATEM 2 M/E Advanced Panel 30

The Blackmagic Design ATEM 2 M/E Advanced Panel 30 is a hardware control surface for the ATEM Constellation switcher line, built for productions that need physical broadcast-quality controls instead of running switching entirely through software. Two independent M/E rows with 30 input buttons each let an operator access two full mix/effects banks simultaneously, with each row capable of controlling up to four M/Es on larger switchers. It's aimed at technical directors who want the speed of dedicated buttons, knobs, and a t-bar fader over navigating menus on a screen.

• 2 M/E rows with 30 input buttons each: Includes 3 independent system control LCDs per row for direct access to switcher parameters.
• Independent select bus per row: Lets each M/E row route sources to aux outputs separately from the others.
• 30 direct cross points, 60 shifted: Tri-color LED crosspoint buttons with 6 rows of 24-character LCD labeling for source identification.
• 4x Ethernet 10/100/1000 BASE-T with loop output: Connects additional control panels or computers without a separate network switch.
• Dedicated macro button: Triggers stored macros directly from the panel hardware.
• USB-C firmware updates: Keeps the panel current without needing to open the chassis.
