Breakout Boxes and Side Plate Bundle for RED KOMODO-X
Breakout Boxes and Side Plate Bundle for RED KOMODO-X
Key Features
Description
Description
Breakout Boxes and Side Plate Bundle for RED KOMODO-X includes:

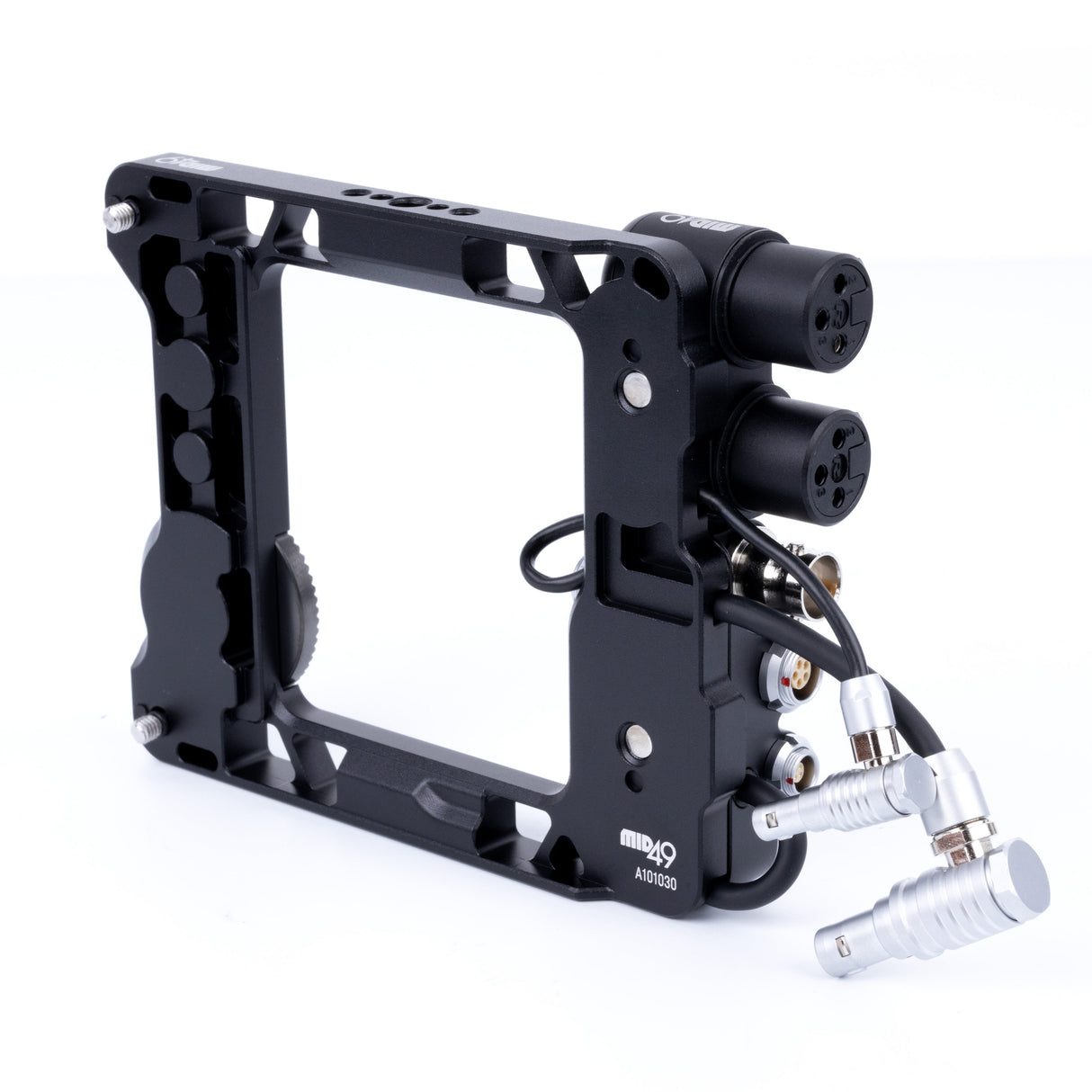

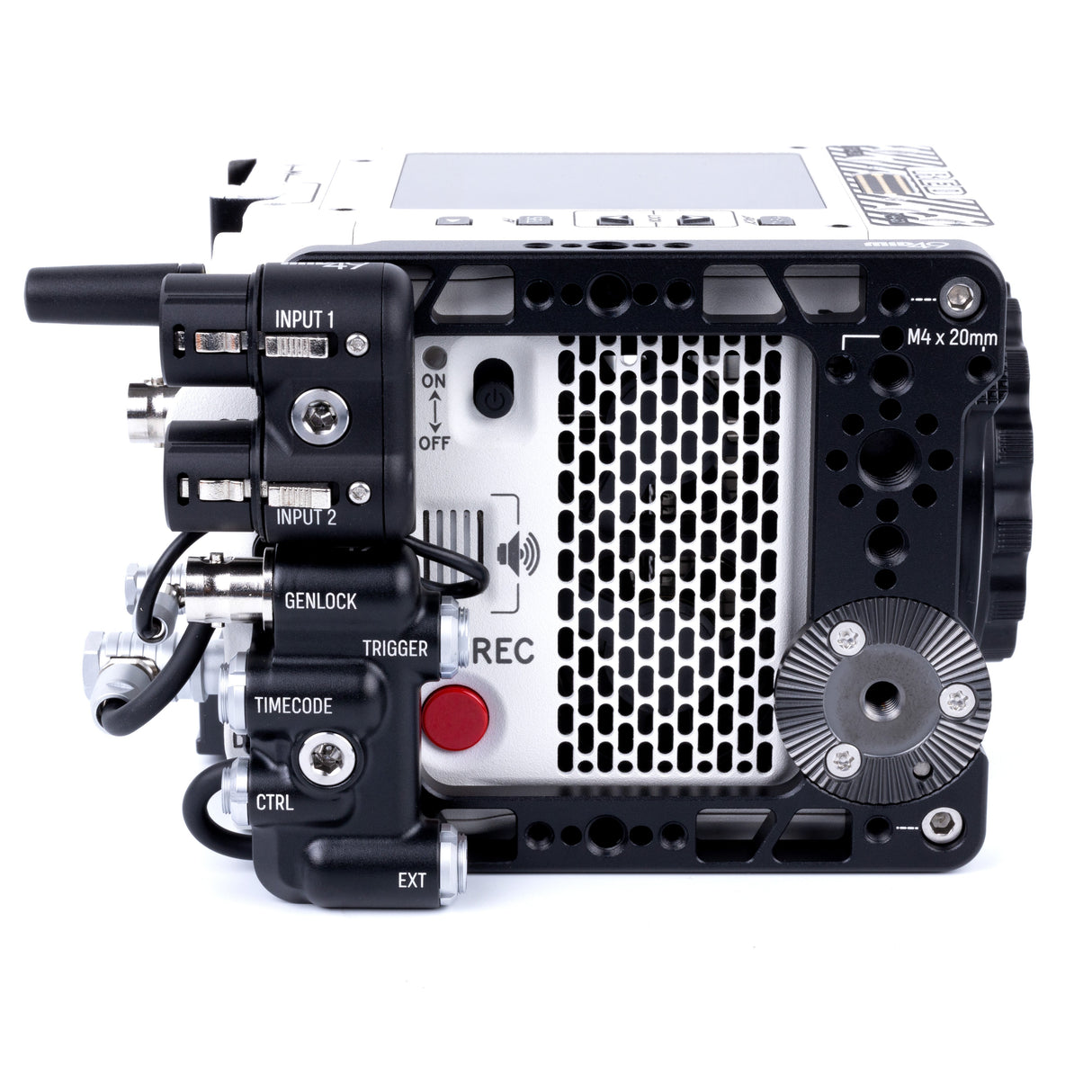

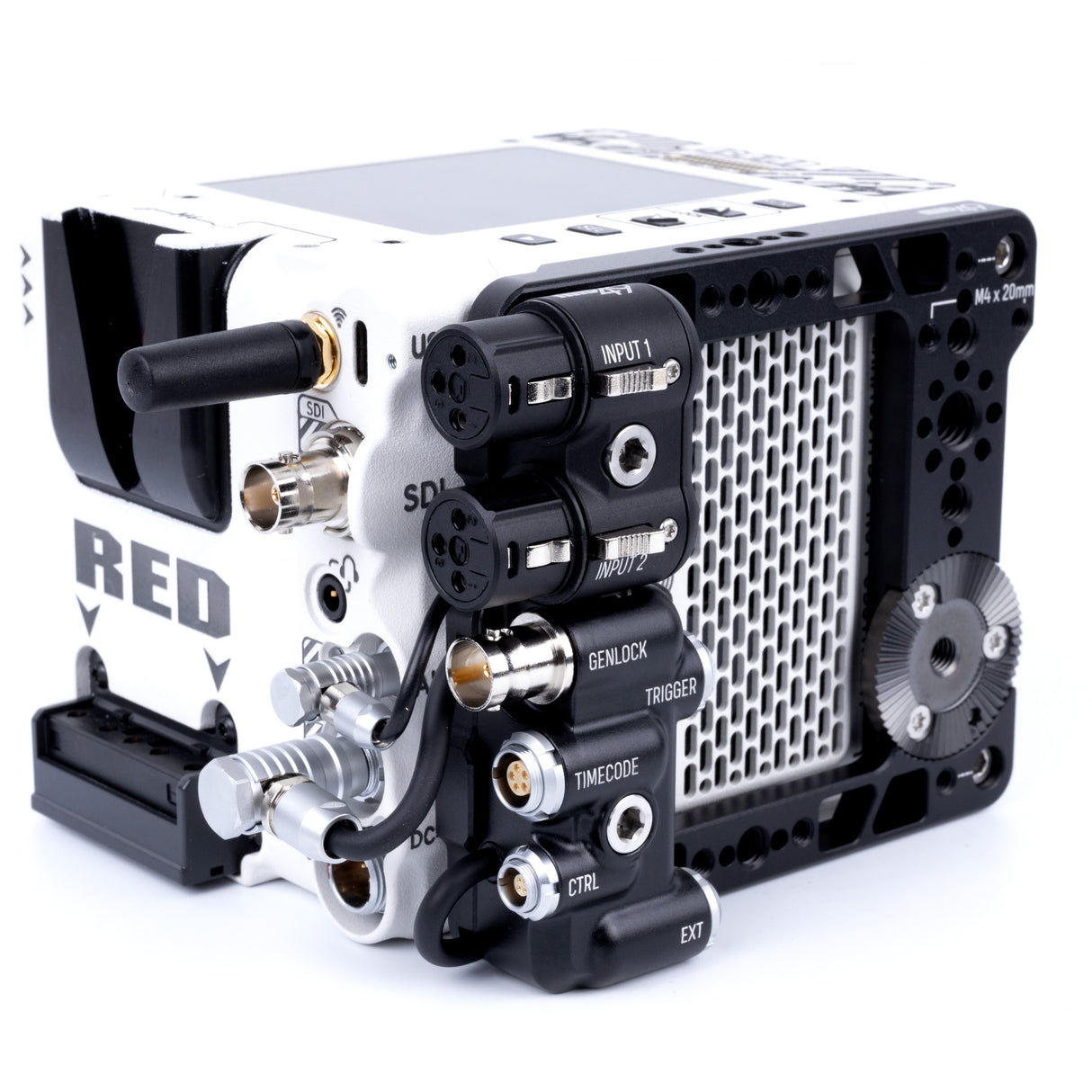

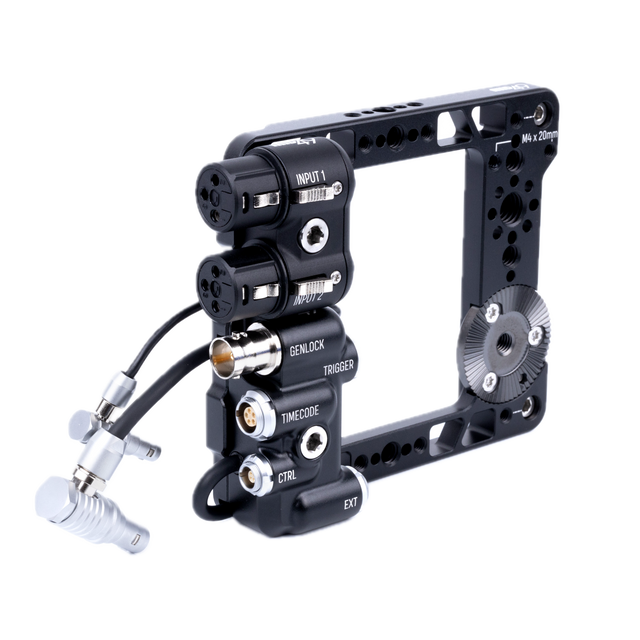

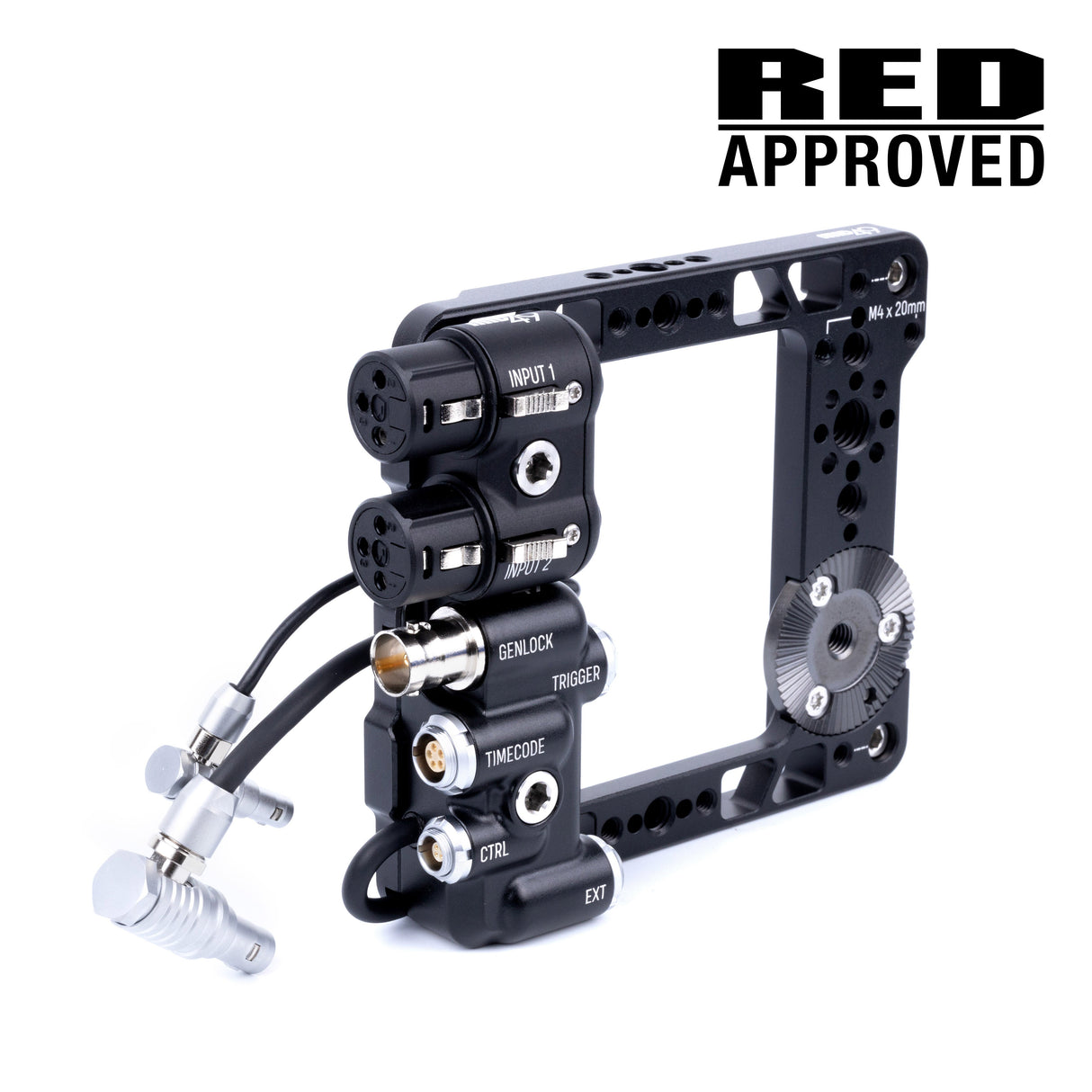

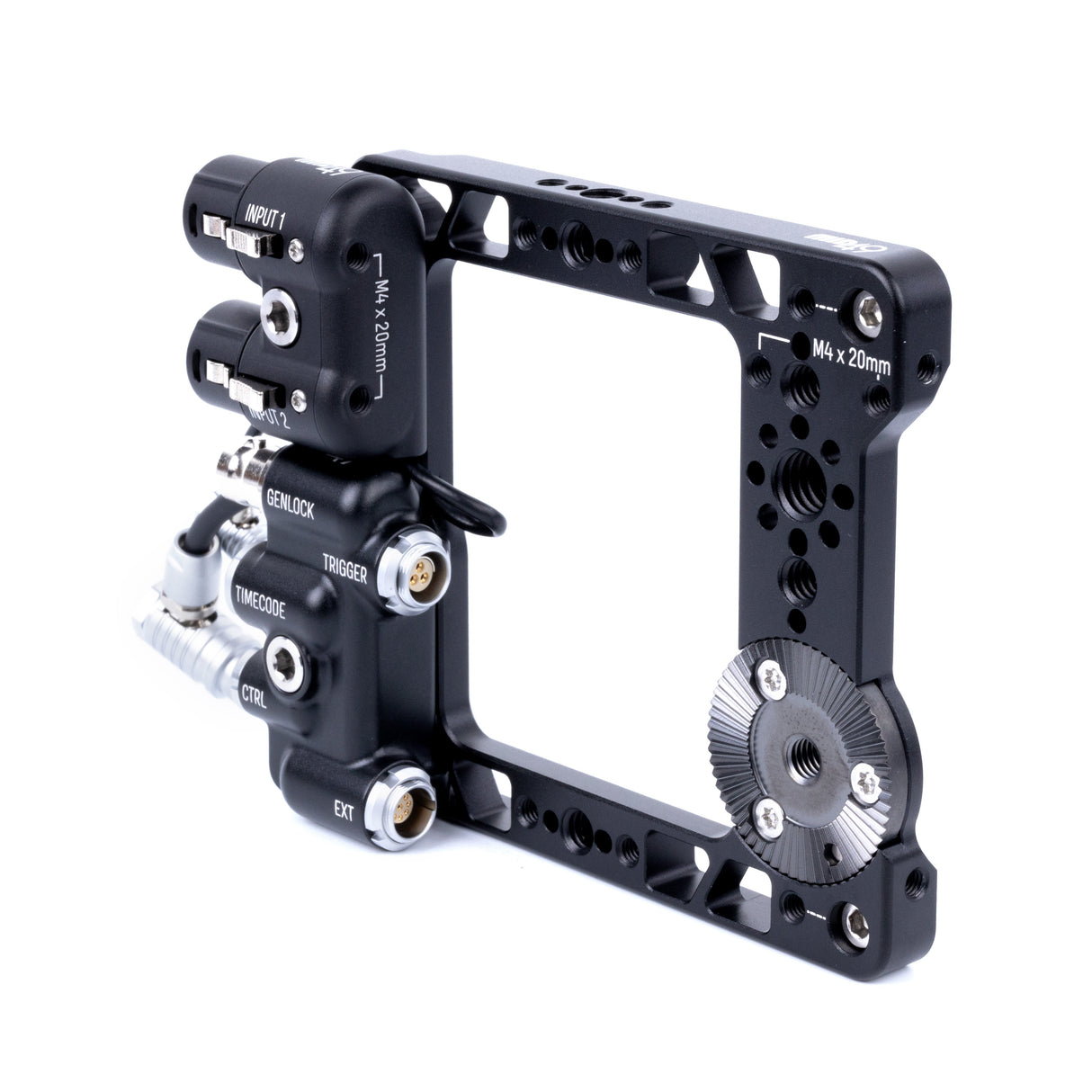

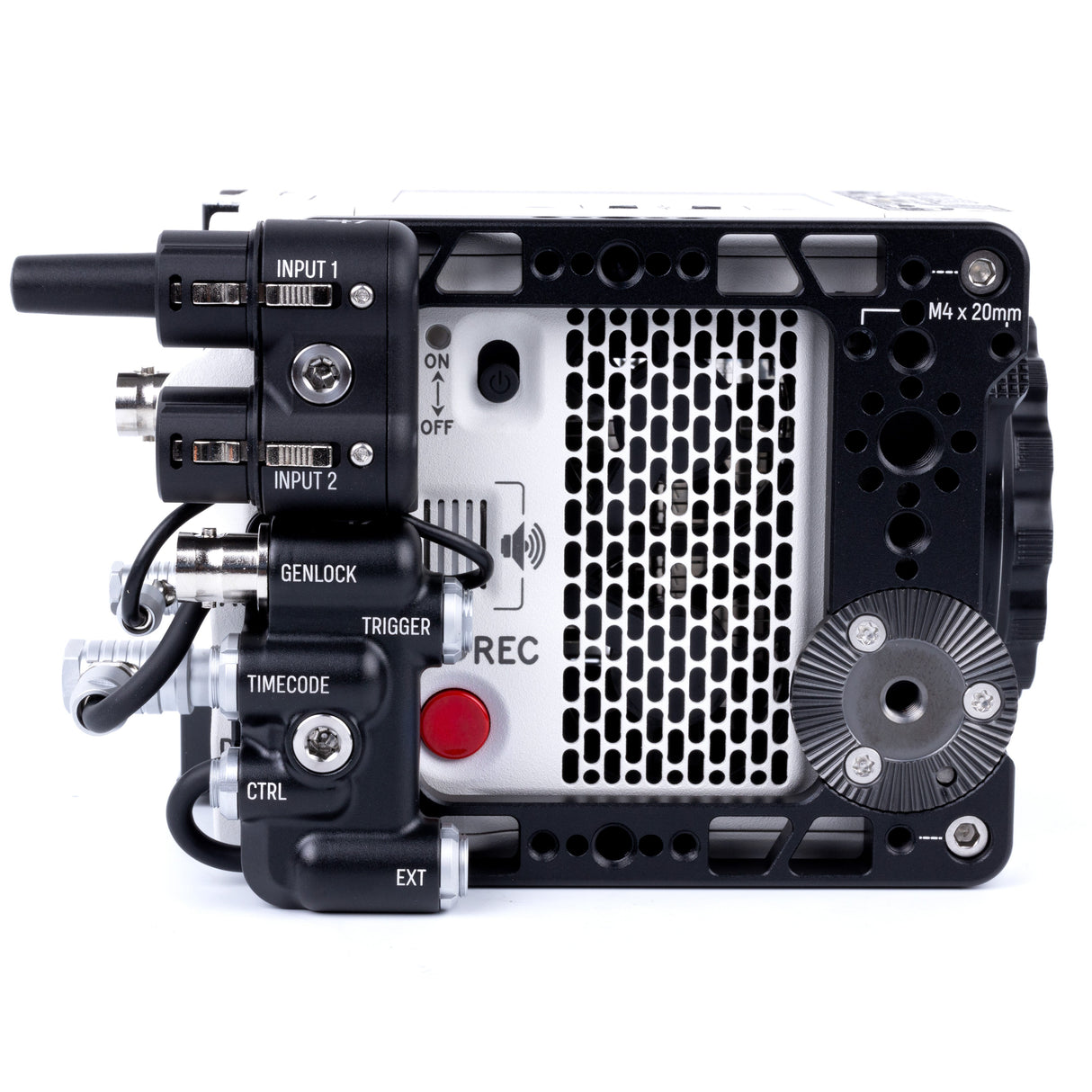

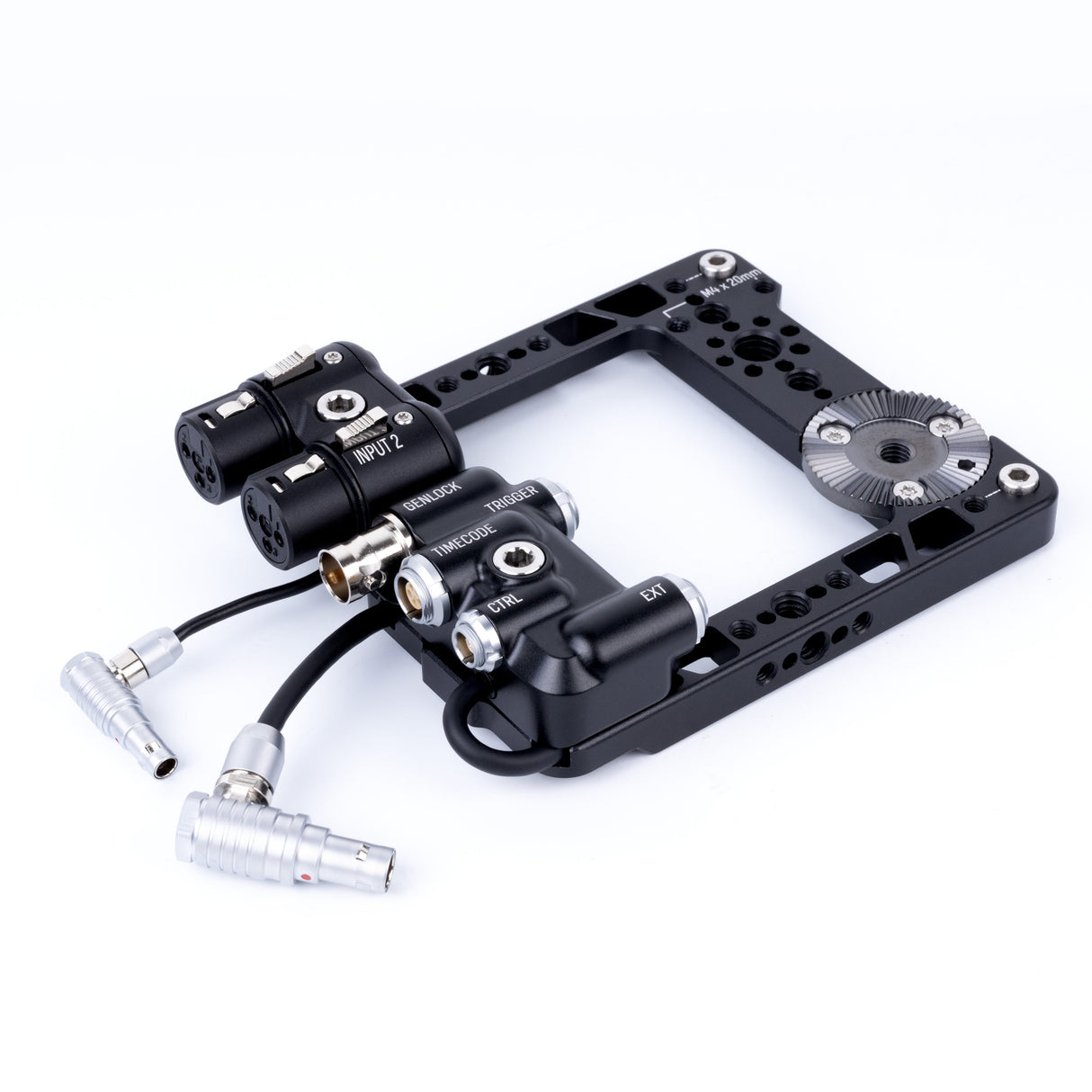

Breakout Side Plate for RED KOMODO and KOMODO-X
A mounting plate that attaches to the side of the RED Komodo-X and provides 1/4-20, 3/8-16 with ARRI locating pins, an ARRI standard rosette, and M4x20mm threaded holes. Rear 1/4-20's provide ideal mounting locations for breakout boxes, and recessed cable loops in the side plate allow for clean cable management. See the install guide video here.
AB-1 (RED Komodo-X, V-Raptor, ARRI Alexa Mini)
A passive adapter that converts the camera's 5-pin 00 LEMO to two standard, full-size XLRs and attaches by a captive 1/4-20 screw and rubber pad.
EB-1 (RED Komodo, Komodo-X, V-Raptor)
An EXT port converter that provides industry-standard connectors:
| Genlock | 75-ohm BNC |
| Timecode | 5-pin 0B |
| CTRL | 4-pin 00 |
| Trigger | 3-pin Fischer |
| EXT Pass-Through | 9-pin 0B |
The Side Plate is compatible with RED's PL Mount support, as seen in this installation guide.
Product Weight: 7.00oz (200g)
Product Dimensions (WxLxH): 4.69 x 3.72 x 1.28in (119 x 95 x 33mm)
