Breakout Boxes and Side Plate Bundle for RED V-Raptor
Breakout Boxes and Side Plate Bundle for RED V-Raptor
Key Features
Description
Description

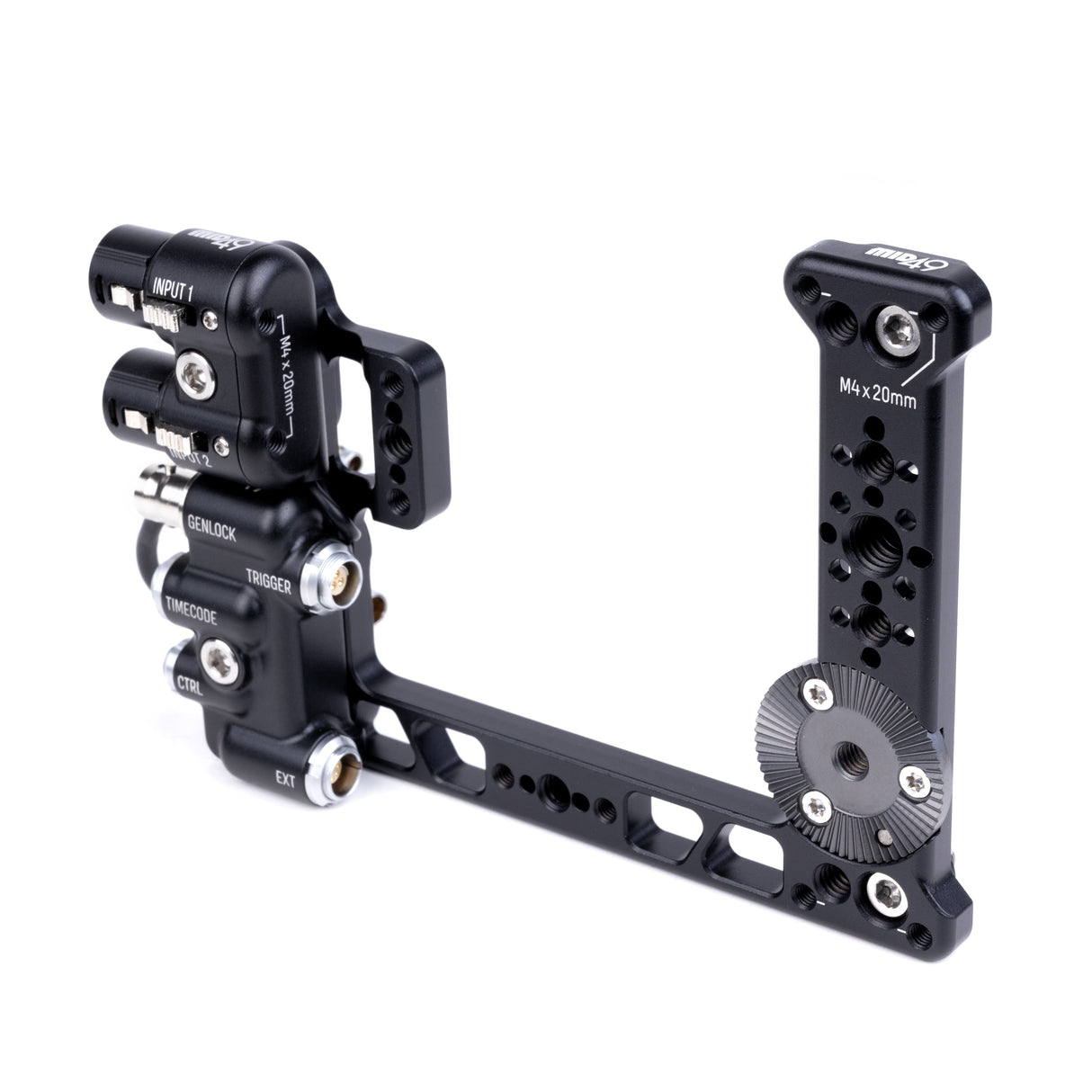

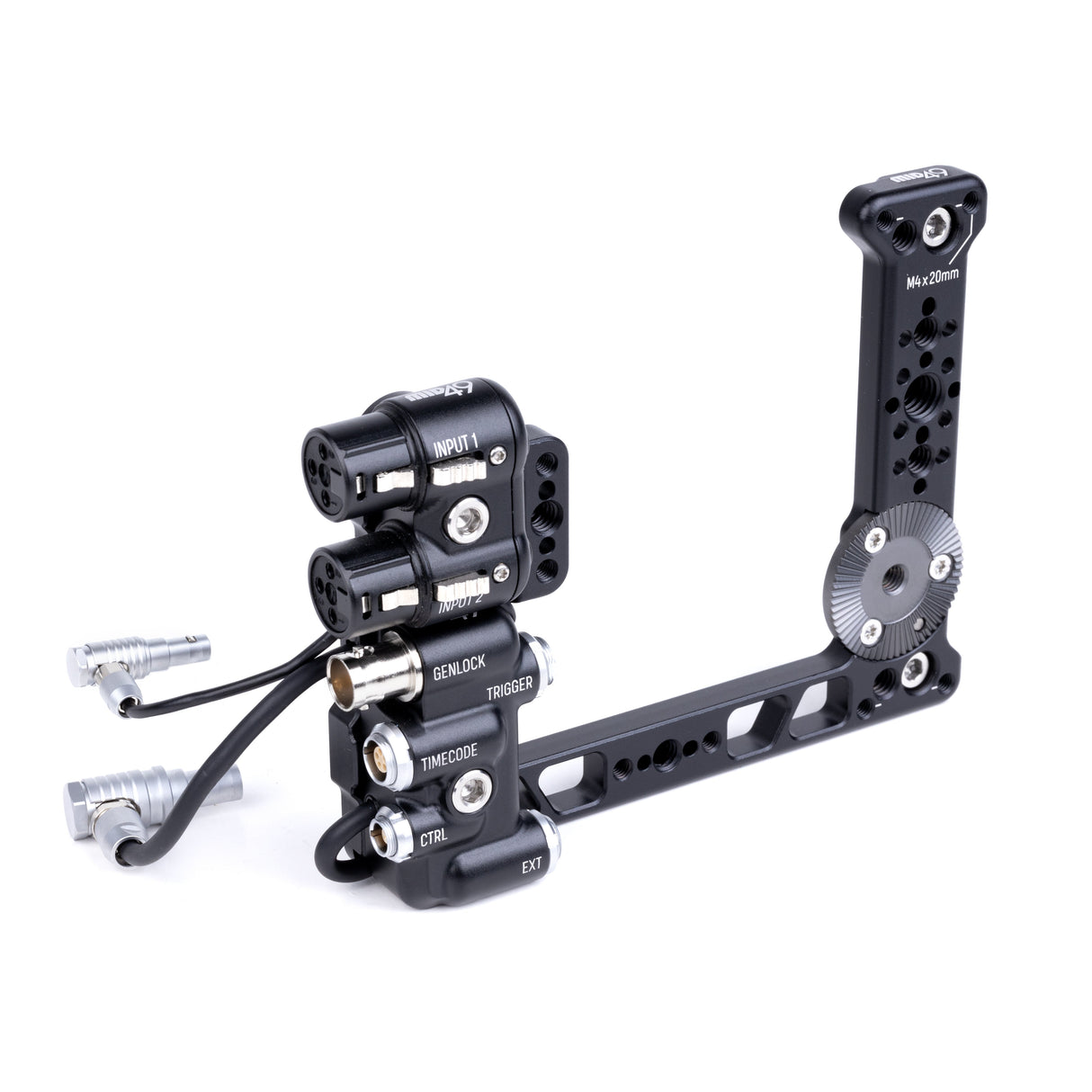

Breakout Boxes and Side Plate Bundle for RED V-Raptor includes:
Breakout Side Plate for RED V-Raptor

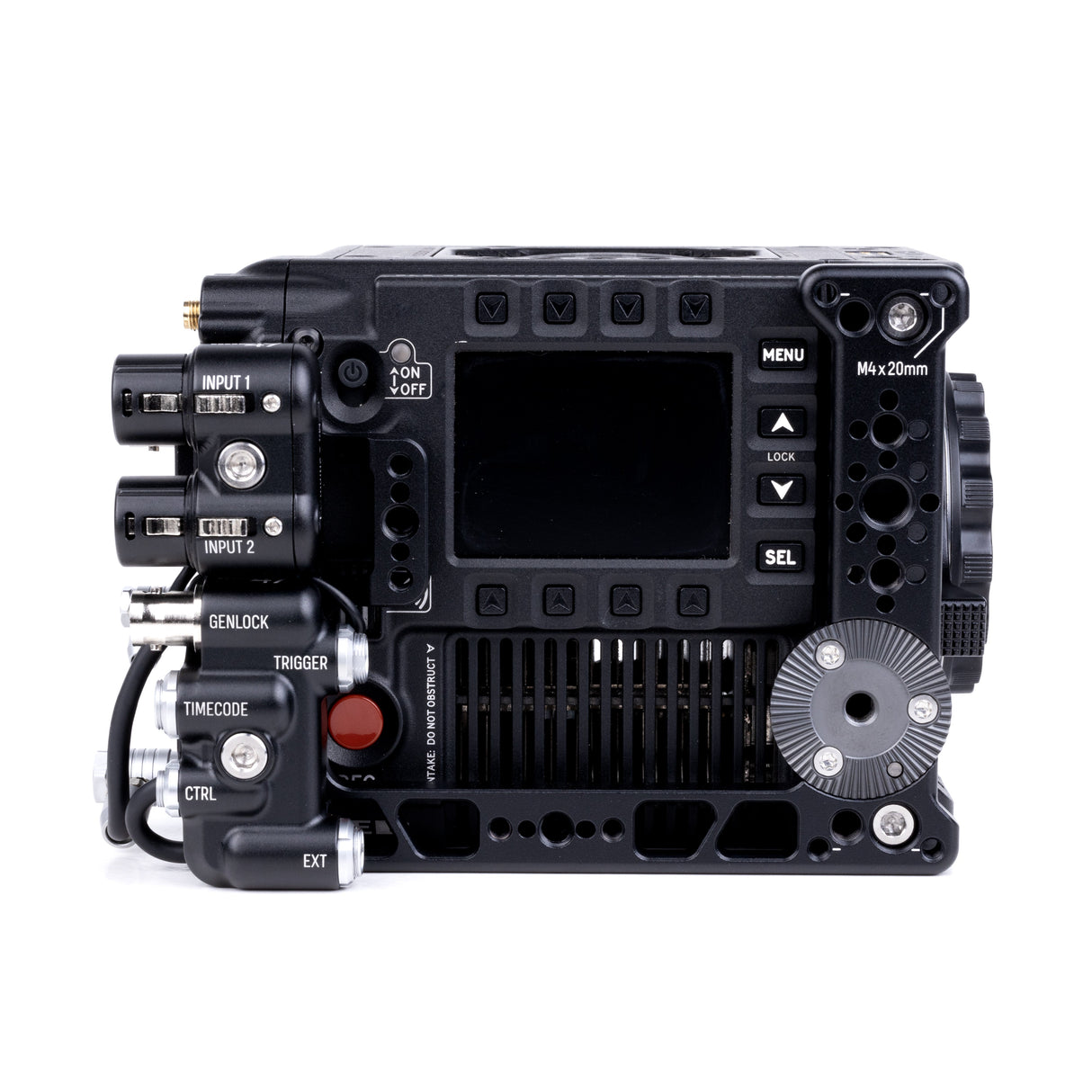

Breakout Side Plate for RED V-Raptor attaches to the side of the RED V-Raptor and provides 1/4-20, 3/8-16 with ARRI locating pins, an ARRI standard rosette, and M4x20mm threaded holes. Two offset 1/4-20 holes matching RED's spacing allow certain 3rd party products to be attached like GDU Atlas Side Handle (Raptor, Right).
The side plate compatibility with other manufacturer's accessories is below:
| Manufacturer | Compatibility Notes |
| 8Sinn | Replaces side plate |
| Bright Tangerine | Replaces side plate |
| Came-TV | Replaces side plate |
| Ignite Digi | Incompatible with Keystone |
|
Kondor Blue |
Replaces side plate |
| Modern Film Tools | Replaces side plate |
| Octamas | Replaces side attachments |
| RED/CS | Replaces side plate and EXT side bar |
| Smallrig | Replaces side plate |
| Tilta | Replaces side plate and EXT function of power module |
| Vocas | Incompatible with top plate |
AB-1 (RED V-Raptor)
A passive adapter that converts the camera's 5-pin 00 LEMO to two standard, full-size XLRs and attaches by a captive 1/4-20 screw and rubber pad.
EB-1 (RED Komodo, Komodo-X, V-Raptor)
An EXT port converter that provides industry-standard connectors:
| Genlock | 75-ohm BNC |
| Timecode | 5-pin 0B |
| CTRL | 4-pin 00 |
| Trigger | 3-pin Fischer |
| EXT Pass-Through | 9-pin 0B |
Please find the installation video here
Product Weight: 7.50oz (212g)
Product Dimensions (WxLxH): 8.85 x 4.25 x 1.13in (225 x 108 x 29mm)
