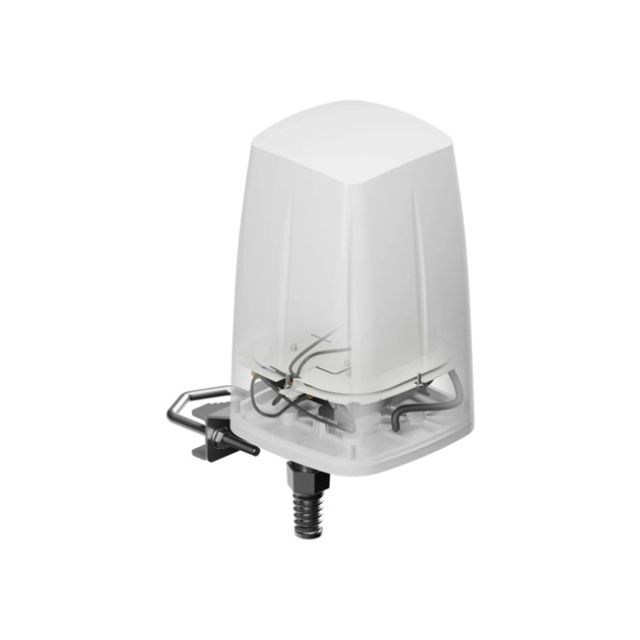

The EtherWAN Outdoor LTE/Wi-Fi Antenna for EASYCELL is built for integrators deploying outdoor cellular gateways that also need local Wi-Fi coverage. It's aimed at installers who want one weatherproof antenna assembly instead of mounting separate LTE and Wi-Fi antennas. Broad LTE band coverage keeps it usable across different carrier frequency allocations.
- Multi-Band LTE Coverage: Covers 617-960, 1700-2200, 2300-2700, and 3300-3800 MHz LTE bands from one outdoor antenna.
- Combined Wi-Fi Antenna: Adds a 2400-2500MHz Wi-Fi antenna with 6dBi gain alongside the LTE elements.
- IP67 Outdoor Rating: Rated IP67 for full outdoor exposure, operating from -40°C to 75°C.
- Omnidirectional Coverage: Omnidirectional radiation pattern with up to 4dBi LTE gain for broad signal coverage.
- Wall, Ceiling, or Mast Mounting: Mounts to a wall, ceiling, or mast to suit the installation.
