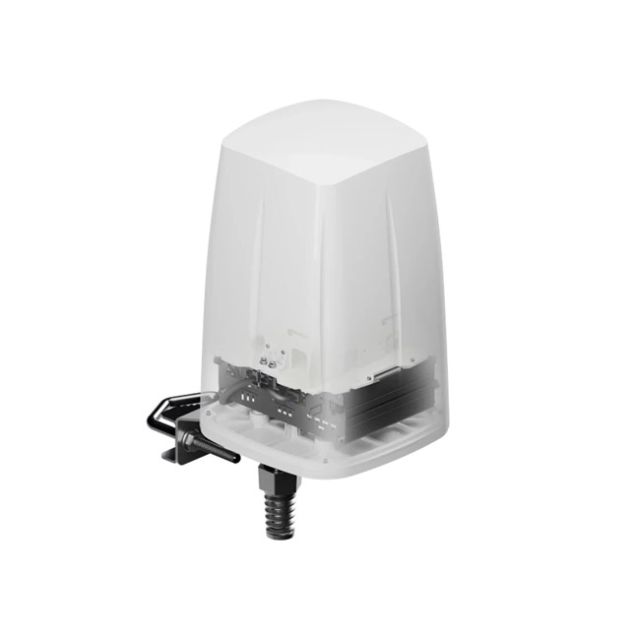

This EtherWAN Outdoor LTE & 5G/WiFi/GPS Antenna is a combined outdoor antenna built specifically for the EASYCELL5G router, bundling cellular, WiFi, and GNSS reception into one weatherproof unit. It's aimed at integrators deploying outdoor cellular routers who need a single antenna mount rather than three separate antennas.
- Combined 5G, WiFi, and GNSS Antenna: Covers 617-960/1700-2700/3300-4300MHz for cellular, 2400-2500/4700-6000MHz for WiFi, and 1560-1610MHz for GNSS.
- Up to 7.5 dBi WiFi Gain: Omnidirectional radiation pattern for reliable wireless coverage.
- IP67-Rated Housing: Rated for -40°C to 75°C operation in outdoor environments.
- Multiple Mounting Options: Wall, ceiling, or mast mounting with 6x RG316 and 1x RG174 cables included.
- RoHS Compliant: 1500g weight in a 160 x 347 x 189mm housing.
