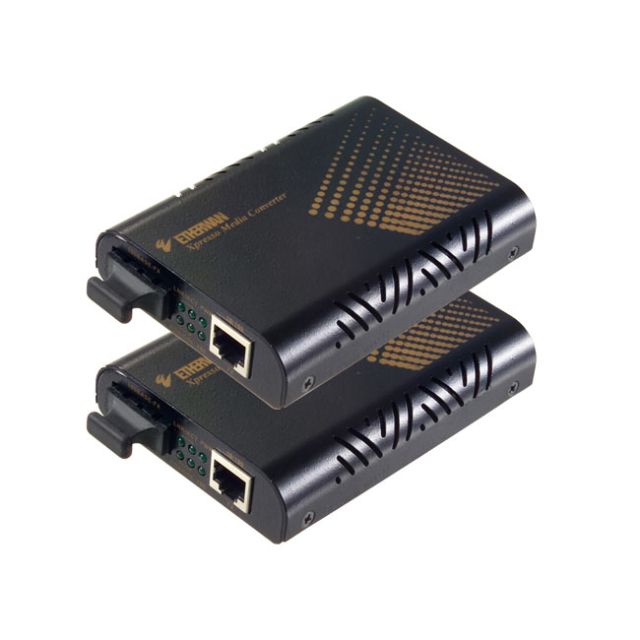

EtherWAN 10/100BASE-TX to 100BASE-FX Multi Mode (ST) 2Km Media Converter

The EtherWAN EL100 Series Media Converter (Multi-Mode ST, 2km) bridges 10/100BASE-T(X) copper Ethernet to 100BASE-FX multi-mode fiber over ST connectors, built for network installers extending Ethernet runs up to 2km beyond copper's distance limits. DIP switches let an installer choose store-and-forward or converter mode and enable or disable Link-Fault-Pass-Through, so link failures on one side get reported to the connected device instead of failing silently. It mounts to a wall on its own or into EtherWAN's EMC1600 chassis for group installations with redundant power.

• 2km multi-mode fiber: Converts between 10/100BASE-T(X) copper Ethernet and 100BASE-FX multi-mode fiber over ST connectors, supporting runs up to 2km.
• DIP switch configuration: Selects between store-and-forward and converter mode, and enables or disables Link-Fault-Pass-Through (LFPT), without special software.
• Link failure notification: When LFPT is enabled, a link failure on one side is passed through to notify the connected device and disable the connection.
• Flexible duplex settings: Full-duplex or half-duplex can be independently enabled or disabled on both the Ethernet port and the fiber port.
• Group installation ready: Mounts to a wall individually or into EtherWAN's EMC1600 chassis system for group installation with power redundancy.
