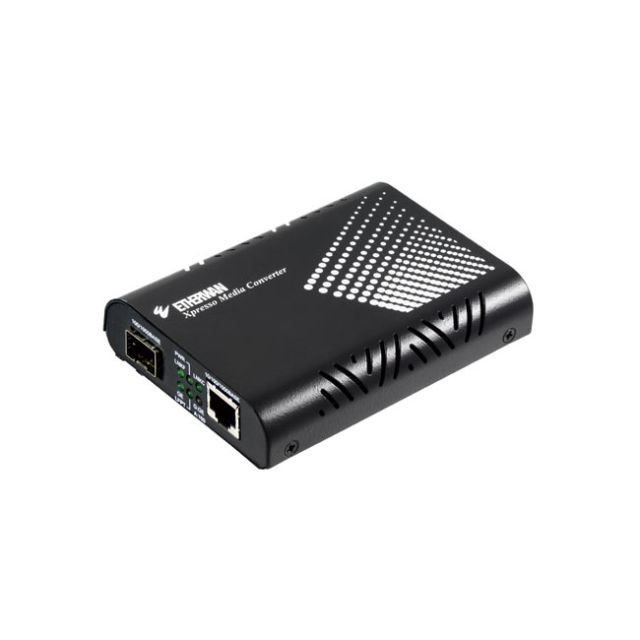

The EtherWAN EL2315 is a dual-rate SFP media converter that bridges 10/100/1000BASE-T copper connections to 100BASE or 1000BASE fiber, letting installers extend a network segment over fiber without swapping switches. A DIP switch selects between 100BASE-FX and 1000BASE-SX/LX fiber modes, and its Link Fault Pass Through feature automatically disables the opposite link if either the copper or fiber side fails, preventing silent network faults. It supports jumbo frames up to 9K bytes and can be wall-mounted individually or installed in EtherWAN's EMC1600 chassis for group installations with redundant power.
- Dual-Rate SFP Fiber Support: DIP switch selects between 100BASE-FX and 1000BASE-SX/LX fiber transmission.
- Link Fault Pass Through: Automatically disables the opposite link if either the copper or fiber connection fails.
- Jumbo Frame Support: Handles frames up to 9K bytes at full Gigabit transmission rate.
- Flexible Installation: Wall-mountable individually or installed in EtherWAN's EMC1600 chassis with redundant power.
