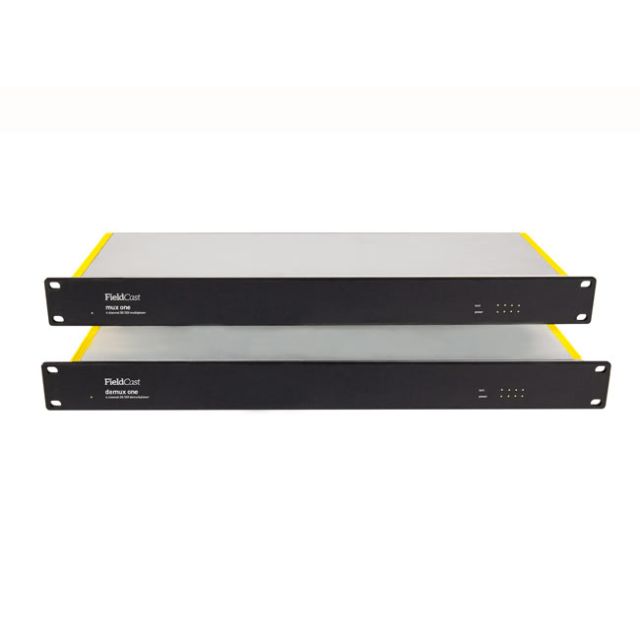

FieldCast Mux/Demux One 3G (4x SDI In/Out)

The FieldCast Mux One and Demux One pair lets productions send four independent channels of 3G-SDI video over a single strand of single-mode fiber, cutting cable runs dramatically in live event and broadcast infrastructure. Mux One multiplexes the four SDI inputs into one fiber output at the camera or stage end, while Demux One reverses the process at the truck or control room, preserving full signal integrity with no processing artifacts. It's built for crews who need to minimize cable count when running long distances between stage and control point.

• 4 Channels Over 1 Fiber Strand: Multiplexes four independent 3G-SDI (2.97GHz) signals onto a single single-mode fiber run.
• Broadcast Standards Compliant: Meets SMPTE 259M, 344M, 292M, and 424M, accepting all SD and HD formats up to 1080p60.
• 1RU Aluminum Enclosure: Compact rack-mount housing for both the Mux One and Demux One units.
• SDI Loop-Through on Every Channel: Each of the four SDI inputs includes loop-through for daisy-chaining or monitoring.
• Universal Power Input: Runs on 110-240VAC with PowerCon connector, weighing approximately 1.5kg per unit.
