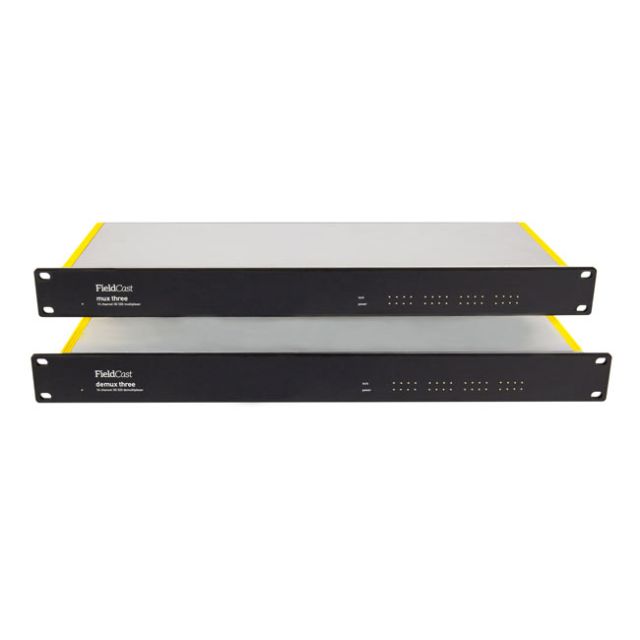

FieldCast Mux/Demux Three 3G (16x SDI In/Out)

The FieldCast Mux Three and Demux Three (16x SDI In/Out) pair lets a production run sixteen independent 3G SDI channels over a single strand of single-mode fiber, without needing a separate Ethernet channel bundled in. It suits broadcast and live event setups where fiber runs are limited or a crew wants to cut cable count without giving up channel density. Because the signal path is unprocessed, it drops into an existing SDI infrastructure without adding conversion steps.

• 16-channel 3G SDI multiplexing: Combines sixteen independent 3G (2.97GHz) SDI channels onto a single-mode fiber strand.
• SMPTE compliant: Meets SMPTE 259M, 344M, 292M, and 424M, accepting all SD and HD standards up to 1080p60.
• Lossless signal path: No processing is applied to the SDI signal, so what goes in comes out unchanged.
• CWDM multiplexing technology: Robust thin-film wavelength-division multiplexing carries all sixteen channels over the unit's maximum rated fiber distance.
• 1RU all-aluminum enclosure: Rack-mount design with LED indicators for power, per-channel module activity, and SDI signal presence.
