Fieldcast Mux/Demux One 12G (4X SDI In/Out)

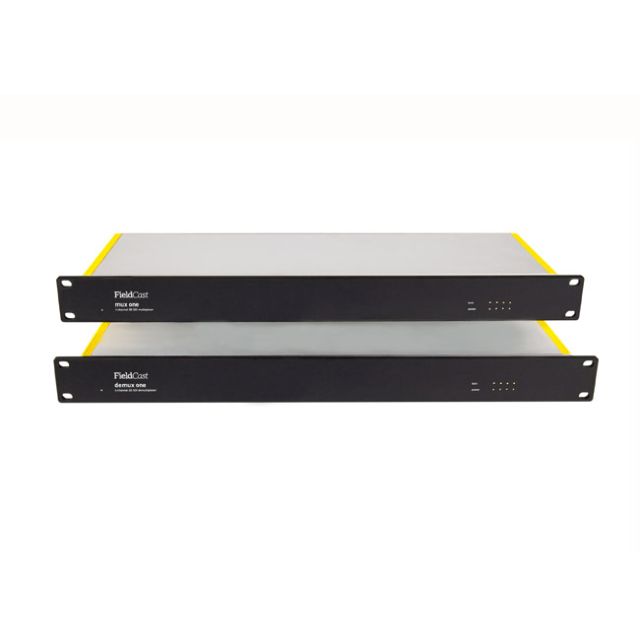

Fieldcast Mux/Demux One 12G (4X SDI In/Out) The Fieldcast Mux/Demux One 12G Is An Innovative Optical Converter System Designed To Transport Up To Four Independent 12G, 6G, 3G, Or HD-SDI Signals Over A Single Fiber Optic Cable. This Setup Is Ideal For Professional Broadcast And Av Applications Where SpacE, Weight, Or Cabling Complexity Are Key ConCErns. Key Features Combines Or Splits Up To Four SDI Signals On A Single Fiber Core (MULtiplexing And DemULtiplexing). Compatible With 12G/6G/3G/HD-SDI Formats. Uses Cwdm Technology To Combine Four Wavelengths Into A Single Mode Fiber. Includes Smpte, St 2082, St 2081, St 424, And St 292 ComplianCE. Available In 3G And 12G Models. Can Work With Fieldcast Hybrid Fiber Cables For Power + Signal Delivery. System Components Mux One 12G - Optical Transmitter Unit 4 X 12G SDI Inputs (Bnc) 1 X Optical Output (Fieldcast Or Lc) Demux One 12G - Optical ReCEiver Unit 1 X Optical Input 4 X 12G SDI Outputs (Bnc) Both Units Come With Fieldcast Chassis Connectors, But Versions With Lc Connectors Are Available For Use With Standard Fiber Systems. Applications Mobile Broadcast Trucks Stadiums And Arenas Outdoor Events Flypacks And Ob Kits Studio Installations With Limited Cable Pathways Mounting Options 19" Rack Mount (1U/2U) Or Standalone Usage. Matching Form Factor Allows Easy PaIRing In The Same Rack Or Equipment Case. Power 12V DC Input Via Locking Connector (Power Adapter Included). Compatible With Fieldcast Power Box Solutions For Mobile Use.
