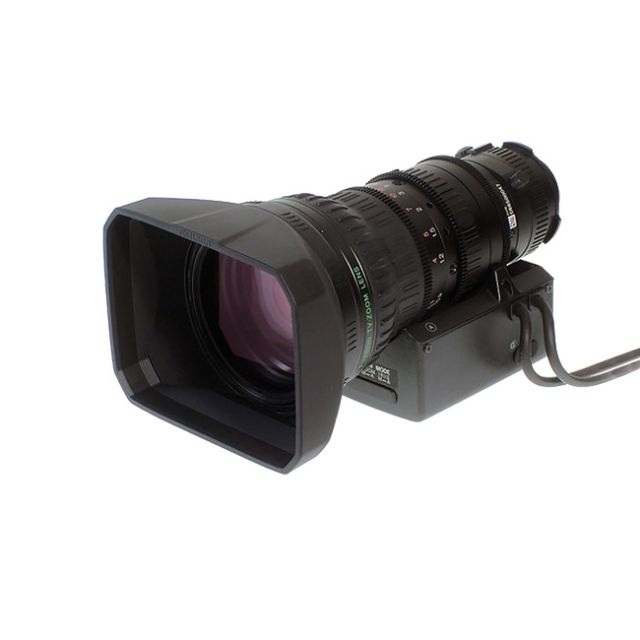

Fujinon XA20SX8.5BMD-DSD 8.5-170mm f/1.8-2.7 Zoom Lens with Motor Drive

The Fujinon XA20SX8.5BMD-DSD is a 20x broadcast zoom lens built for 2/3-inch sensor cameras, with a motor drive that makes it suitable for full servo remote control on pan-and-tilt systems. It's designed for studio and remote production work such as sports coverage or robotic camera rigs rather than handheld shooting, since the servo can't be operated from the shoulder. Internal focusing and Fujinon's QuickZoom system keep focal length consistent while allowing rapid changes between wide and telephoto framing.

• 20x zoom range: Covers 8.5-170mm, giving wide-to-tight coverage from a single lens.
• Full servo remote control: The motor drive supports remote pan-and-tilt operation, ideal for robotic or unmanned camera setups.
• QuickZoom: A push-button jump to telephoto in 0.7 seconds lets an operator check focus, then returns automatically to the prior focal length.
• Inner (internal) focus: Minimizes lens breathing so focal length stays consistent as focus is adjusted.
• Macro capability: Built-in macro mode extends the lens's close-focus range for detail shots.

Specifications

• Focal length: 8.5-170mm
• Zoom ratio: 20x
• Sensor coverage: 2/3-inch
• Maximum aperture: f/1.8 at 8.5-113mm; f/2.7 at 170mm
• Control: Full servo remote control with QuickZoom and inner focus
