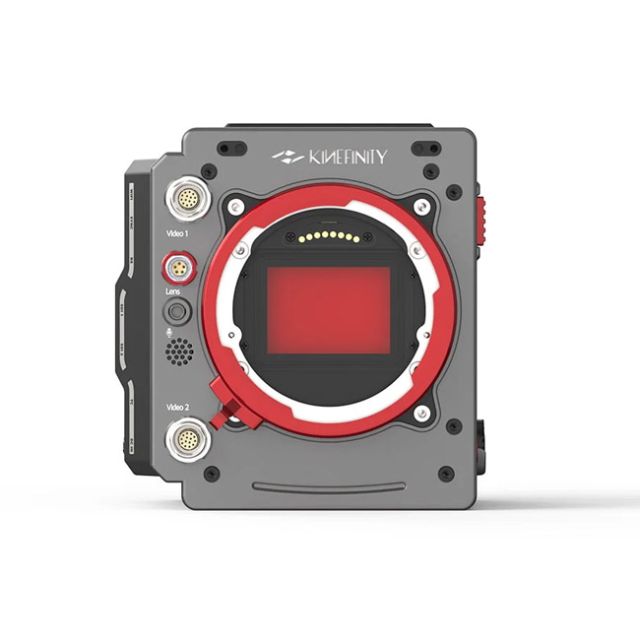

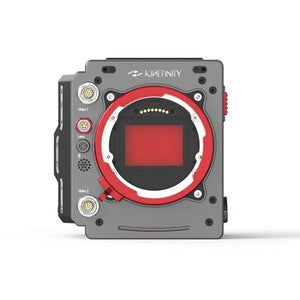

Kinefinity MAVO mark2 LF (KineMOUNT)

The Kinefinity MAVO mark2 LF (KineMOUNT) bundles the MAVO mark2 LF full-frame cinema camera with Kinefinity's native KineMOUNT lens mount in one kit. It's the same full-frame 6K sensor, dual native ISO, and in-camera ProRes recording as the standalone MAVO mark2 LF, aimed at filmmakers who want the mount ready to go without ordering it as a separate accessory. KineMOUNT's tool-free design lets you swap EF, PL, and LPL adapters on set without recalibrating flange distance.

• Full-frame 6K sensor: The same 3:2 CMOS sensor as the MAVO Edge 6K shoots up to 75fps at 6K Wide and 150fps at 4K Wide.
• Dual native ISO 800/5120: A second native ISO of 5120 keeps noise low in available-light and night shooting, without switching gain modes mid-scene.
• KineMOUNT included: This kit bundles the native KineMOUNT, precise positioning with reliable wrench locking, compatible with MAVO Edge 8K, MAVO Edge 6K, and MAVO mark2, so EF, PL, and LPL adapters install without extra calibration.
• In-camera ProRes recording: Records Apple ProRes 422 LT through 4444 XQ with Kine LOG3 Gamma, straight to NVMe media.
• KineMAG Nano media: Records to 1TB/2TB NVMe SSDs with Read-only and RAID 5 protection, and offloads over USB-C at up to 10Gbps.
• Compact, award-winning body: The integrated MAVO Edge-style body weighs just 1.35kg (2.98 lbs) with dual SDI outputs carrying embedded metadata and audio.
• Flexible power options: A hybrid battery plate runs V-mount or BP-U type batteries, with UPS support for NP-F550-style batteries via the optional KineKit-Edge cage.

Specifications

• Sensor: Full-frame 3:2 CMOS (shared with MAVO Edge 6K)
• Frame rates: Up to 75fps at 6K Wide; 150fps at 4K Wide
• ISO: Dual native 800/5120
• Kit contents: MAVO mark2 LF body + native KineMOUNT lens mount
• Recording: Apple ProRes 422 LT through 4444 XQ, Kine LOG3 Gamma
• Media: KineMAG Nano 1TB/2TB NVMe M.2 2280 SSD (PCIe), Read-only and RAID 5 protection, USB-C offload up to 10Gbps
• Body weight: 1.35kg (2.98 lbs)
• Connections: Dual SDI outputs with embedded metadata and audio; multi-channel audio recording
• Power: Hybrid battery plate, 14.8V V-mount (KineBAT PD 75W/150W) or BP-U type (GripBAT 4S); NP-F550-style UPS support via optional KineKit-Edge cage and UPS Baseplate
