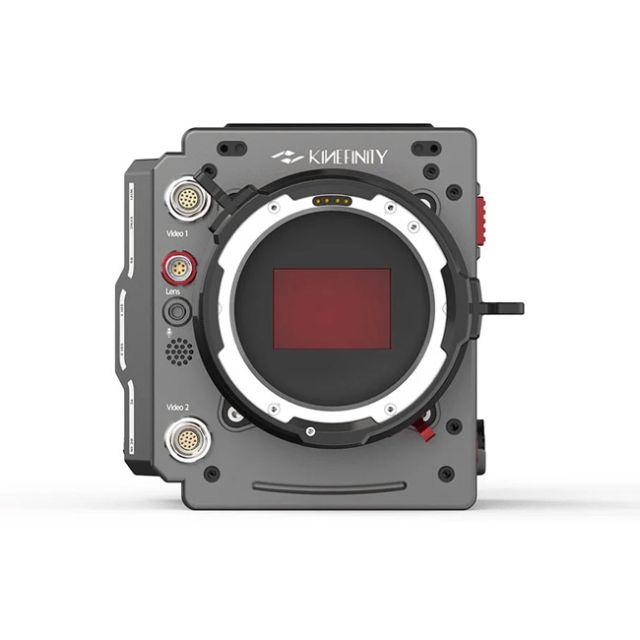

Kinefinity MAVO mark2 LF (PL MOUNT)

The Kinefinity MAVO mark2 LF (PL MOUNT) bundles the MAVO mark2 LF full-frame cinema camera with Kinefinity's Active PL Mount in one kit. It's the same full-frame 6K sensor, dual native ISO, and in-camera ProRes recording as the standalone MAVO mark2 LF, aimed at productions running professional PL cinema lenses that want Cooke/i lens metadata without an adapter. The Active PL Mount locks to the body with four corner screws for a rigid, long-term connection to heavier PL glass.

• Full-frame 6K sensor: The same 3:2 CMOS sensor as the MAVO Edge 6K shoots up to 75fps at 6K Wide and 150fps at 4K Wide.
• Dual native ISO 800/5120: A second native ISO of 5120 keeps noise low in available-light and night shooting, without switching gain modes mid-scene.
• Active PL Mount included: This kit bundles Kinefinity's Active PL Mount, secured with four corner screws to the body and supporting the Cooke/i protocol to record focal length, aperture, and depth-of-field metadata frame by frame.
• Interchangeable with KineMOUNT: The Active PL Mount can swap back to the native KineMOUNT, and reattaching it doesn't require flange-distance recalibration.
• In-camera ProRes recording: Records Apple ProRes 422 LT through 4444 XQ with Kine LOG3 Gamma, straight to NVMe media.
• KineMAG Nano media: Records to 1TB/2TB NVMe SSDs with Read-only and RAID 5 protection, and offloads over USB-C at up to 10Gbps.
• Flexible power options: A hybrid battery plate runs V-mount or BP-U type batteries, with UPS support for NP-F550-style batteries via the optional KineKit-Edge cage.

Specifications

• Sensor: Full-frame 3:2 CMOS (shared with MAVO Edge 6K)
• Frame rates: Up to 75fps at 6K Wide; 150fps at 4K Wide
• ISO: Dual native 800/5120
• Kit contents: MAVO mark2 LF body + Active PL Mount (2nd-generation PL design, four-corner-screw mounting, Cooke/i protocol)
• Mount notes: Stainless steel flange face for a stable, long-term connection; interchangeable with KineMOUNT without recalibrating flange distance; records timecode-synced lens metadata (focal length, aperture, depth of field) frame by frame for post-production
• Recording: Apple ProRes 422 LT through 4444 XQ, Kine LOG3 Gamma
• Media: KineMAG Nano 1TB/2TB NVMe M.2 2280 SSD (PCIe), Read-only and RAID 5 protection, USB-C offload up to 10Gbps
• Body weight: 1.35kg (2.98 lbs)
• Power: Hybrid battery plate, 14.8V V-mount (KineBAT PD 75W/150W) or BP-U type (GripBAT 4S); NP-F550-style UPS support via optional KineKit-Edge cage and UPS Baseplate
