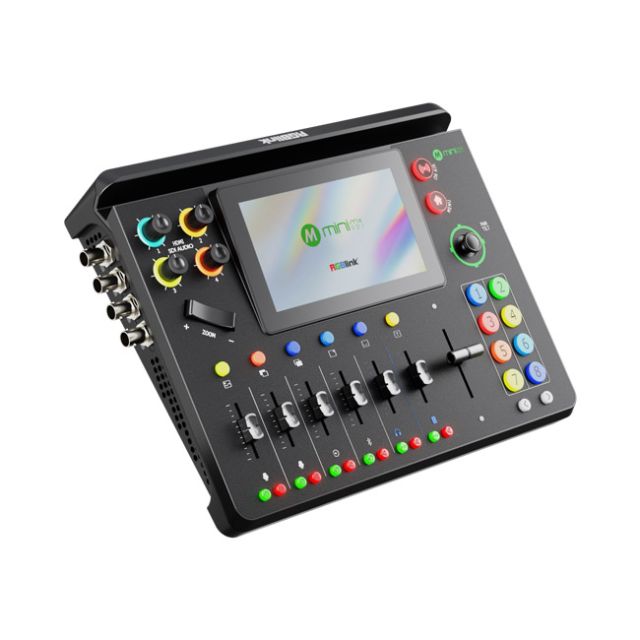

RGBlink mini-mx-SDI

The RGBlink mini-mx-SDI is an all-in-one video switcher built for live production and streaming teams who need HDMI, SDI, UVC, and NDI sources on one compact unit with a built-in touchscreen. It accepts 4 HDMI 2.0 and 4 3G-SDI inputs alongside bidirectional UVC and NDI I/O, plus analog and Bluetooth audio, so it bridges cameras, PCs, and network sources in a single switcher. Beyond switching, it adds real audio processing — noise reduction, EQ, echo, reverb, and voice fusion — that its sibling mini-mx doesn't include.

• Ten input connectors: Accepts 4 HDMI 2.0 inputs, 4 3G-SDI inputs, plus bidirectional UVC and NDI sources, for 6 customizable video input channels.
• Built-in audio processing: Adds Noise Reduction, Equalizer, Echo, Reverb, and Voice Fusion for its analog (2x Phantom, 1 Line, 1 Mic) and Bluetooth audio inputs, with up to 8-channel audio mixing.
• Webcam and disk recording: A USB 3.0 output captures in YUY2 or MJPEG and is recognized as a standard webcam, while the bidirectional UVC port supports USB disk recording or wireless mic/speaker devices like the RGBlink AI mini.
• NDI encode and decode together: The Ethernet port's NDI license allows the encoder and decoder to run simultaneously, supporting NDI|HX2.
• Production switching tools: Includes dynamic output control, picture-in-picture, chroma key, luma key, transitions, and onboard PTZ camera control via VISCA or NDI.
• Remote multi-platform streaming: Web app and TAO Cloud integration allow remote control and simultaneous re-streaming to at least 4 platforms.
