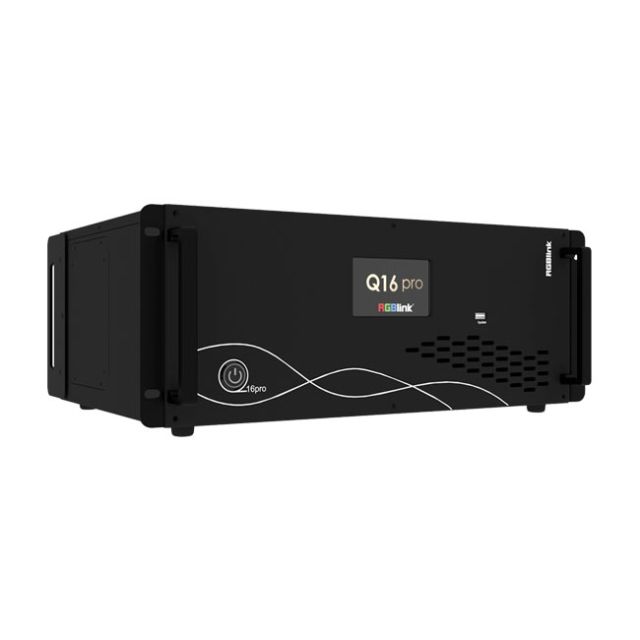

RGBlink Q16pro 2U Universal Processor

The RGBlink Q16pro 2U Universal Processor is a modular video processing and splicing server built for corporate AV, retail, and digital signage installs that need to drive large multi-screen video walls reliably. Its card-based architecture supports hot-swappable input and output modules, so an integrator configures exactly the I/O mix a venue needs and can add redundant power for mission-critical deployments. Both 4K input and 4K output are supported, with multi-screen and multi-layer output capability built into the processing engine.

• Modular hot-swap I/O: Card-based input and output modules can be hot-swapped, supporting up to 3 input modules and 2 output modules in a max 12x8 configuration.
• 4K processing: Accepts and outputs 4K video sources with 12-bit color depth in RGB 4:4:4 color space.
• Multi-screen output: Each output module supports up to 8 screens spanning the output port without occupying processing layers.
• Redundant power: Supports a dual power module backup configuration for mission-critical, always-on deployments.
• Built-in graphics tools: Includes dual independent OSD rolling subtitles, LOGO overlay, and multi-window monitoring for inputs and outputs.
• Seamless scene switching: Switches between signals and scenes seamlessly, with EDID management and 3D image processing built in.
