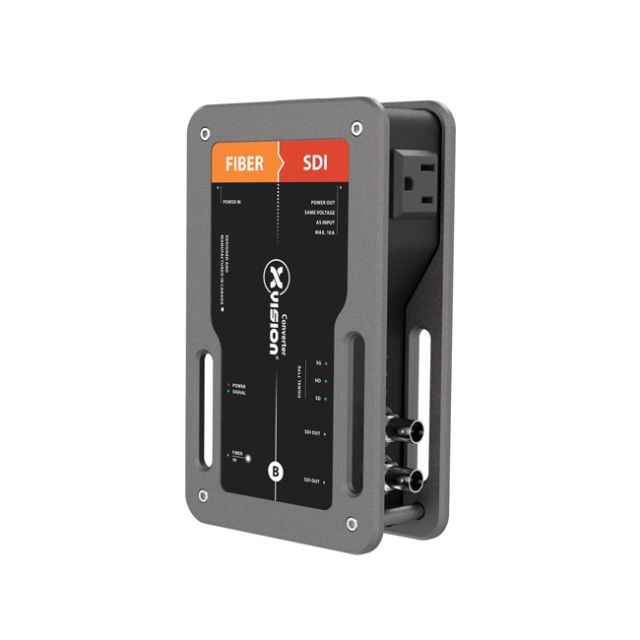

Theatrixx xVision Fiber to Dual 3G-SDI Converter

Theatrixx xVision Fiber to Dual 3G-SDI Converter Professional equipment in mission-critical applications is all about reliability and confidence. So we started with a clean sheet, and built what might soon become your most trustworthy piece of equipment. /Introducing the world's first video converters truly designed for the road. Video converters nowadays are used everywhere on professional A/V events, presentations, live shows and tours and often have a critical role. Yet, they are often the weakest link in the signal chain. Low quality connectors, weak enclosure, external consumer-grade power supply, and overall barebones design that all contribute to a generally unreliable piece of equipment. We wanted to change that, so we designed the xVision Video Converters. Integrated power supplywith locking PowerCON Connector. Never rely on a cluster of wall-warts again. Built-in convenience ACoutlet to power nearby projector, TV, laptop, small video projector"¦ Power bar to power both the converter and device not required anymore. Magnetic stacking systemand non-skid rubber pad for table top application. Saves at least 10 gaffer tape rolls a year. Multiple mounting options:C-Clamp, wall-mount adapter, LCD mount adapter and belt adaptor. Rugged, Tour-ready and aesthetic enclosure:The sexiest widget in your tool box, that will keep looking good for years to come. Plug-n-play operation; No dipswitches, buttons or menus to fumble with : It just works. Clear and ample status LED indicatorsfor quick troubleshooting. Easy on-the-field identificationwith unique color and alphabetic coding system. SFP-basedvideo transmission for interoperability with standard SDI over fiber devices. Choice of threeoptical connectors, each available as single- mode and multimode types. Re-clocked and amplifiedSDI loop thru Proudly designed and assembled in Canada. Specifications Connections Video Input Choice of Multimode or Singlemode /Choice of Optical SDI on ST, OpticalCON DUO /or OpticalCON QUAD /(see ordering information) Video Output: 2 x 3G/HD/SD SDI BNC Supported Signals Video Format: 3G-SDI Level A and B, HD-SDI, SD-SDI with embedded audio SMPTE Standards: 425 M Level A & B, 424 M, 292 M, 259 M Physical Height: 50 mm (1.97 in) Depth: 180 mm (7.08 in) Width: 107 mm (4.21 in) Weight: 1 kg (2.2 lbs) Alternate Form Factor: Also available as a Reversible Module Environmental Relative Humidity: 0% to 90% non-condensing Operating Temperature: 0-40 °C Power Requirements Power Supply Built-in power supply /PowerCON input /Edison Nema 5-15 output (loop-thru) Power Consumption: 15W Operational Voltage Range 100-120V, 50-60Hz /(100-240V, 50-60Hz available with PowerCON True1) Courtesy Outlet: Max 10 A, same voltage as input In the box xVision Converter Fiber to SDI /AC Mains to PowerCON cable (1.5m, specify plug type at ordering) Ordering information Option 1 Singlemode (S) /Multimode (M) Option 2 ST Connector (1) /OpticalCON DUO (2) /OpticalCON QUAD (3)
