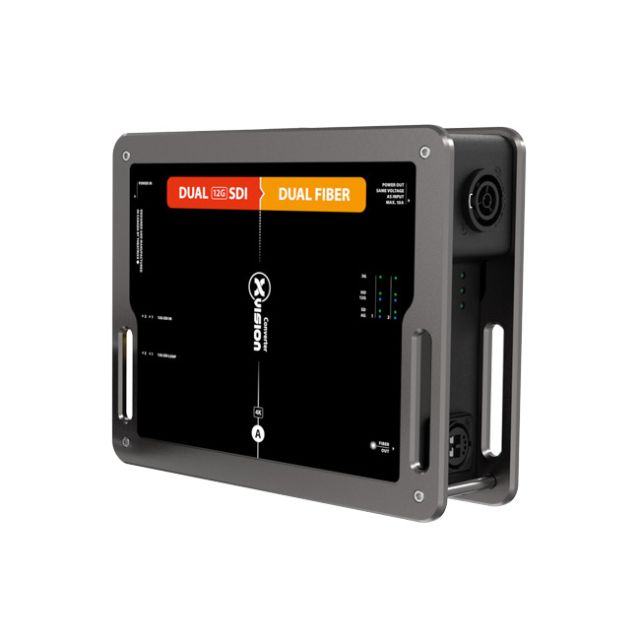

The Theatrixx xVision Dual 12G-SDI to Dual Fiber Converter takes two 12G/6G/3G/HD/SD-SDI inputs and converts them to dual fiber output, built for high-bandwidth touring productions that need rugged, road-ready signal conversion.
- Integrated Power Supply: Locking PowerCON connector with a built-in AC outlet to power a nearby projector, TV, or laptop without a separate power bar.
- Magnetic Stacking System: Non-skid rubber pad supports tabletop use and stacking with other xVision units.
- Multiple Mounting Options: C-clamp, wall-mount adapter, LCD mount adapter, and belt adapter cover different install scenarios.
- Plug-and-Play Operation: No dip switches, buttons, or menus -- clear status LEDs and a color/alphabetic coding system make field identification and troubleshooting fast.
- Designed and Assembled in Canada: Built specifically for the reliability demands of touring and mission-critical A/V work.
- 2x 12G/6G/3G/HD/SD-SDI Inputs with Loop-Thru: Supports SMPTE 2082-1, 2082-10, and 425M Level A & B standards.
- SFP-Based Fiber Output: Choice of multimode or singlemode with OpticalCON DUO or QUAD connectors.
- Wide Voltage Range: Operates across 100-240V, 50-60Hz via PowerCON True1.
| Video Input | 2x 12G/6G/3G/HD/SD SDI BNC (with loop-thru) |
| SMPTE Standards | 2082-1, 2082-10, 425M Level A & B, 424M, 292M, 259M |
| Dimensions (H x D x W) | 62mm x 180mm x 221mm |
| Weight | 2kg (4.4 lbs) |
| Power Consumption | 45W max |
| Operational Voltage | 100-240V, 50-60Hz |
| Operating Temperature | 0-40°C |
