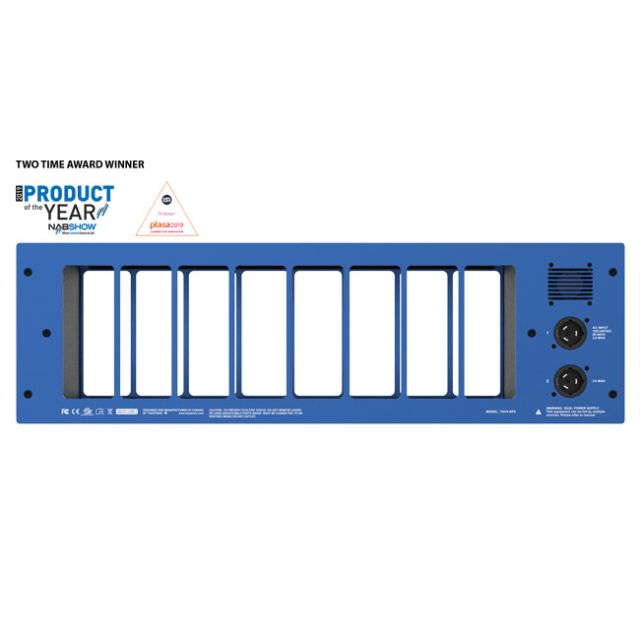

The Theatrixx 8-Bay Reversible Frame is a modular rackmount converter chassis extending the xVision Converter line, built to eliminate wall-warts with self-enclosed, reversible signal-conversion modules.
- 8 Slots, 3RU Host Unit: Dual, oversized power supplies configured for automatic switch-over on failure, with front LEDs indicating status.
- Reversible Modules: Modules insert in either direction, letting inputs/outputs sit at the front or back of the unit depending on the application.
- Gold-Plated Spring-Pin Power Delivery: Magnetic retention delivers DC power to modules without messy cabling or external power bricks.
- Enclosed Modules: No exposed PCBs, protecting the electronics against static shock, dust, and general wear.
- Dual Locking PowerCON True1 Mains Input: 200W max power consumption per input, rated for 90-250V/50-60Hz.
- Wide Module Library: Available modules include SDI-HDMI conversion, distribution amplifiers, audio embedders/de-embedders, fiber conversion, and HDBaseT, with more added regularly.
