Theatrixx HDMI to 12G-SDI Reversible Module

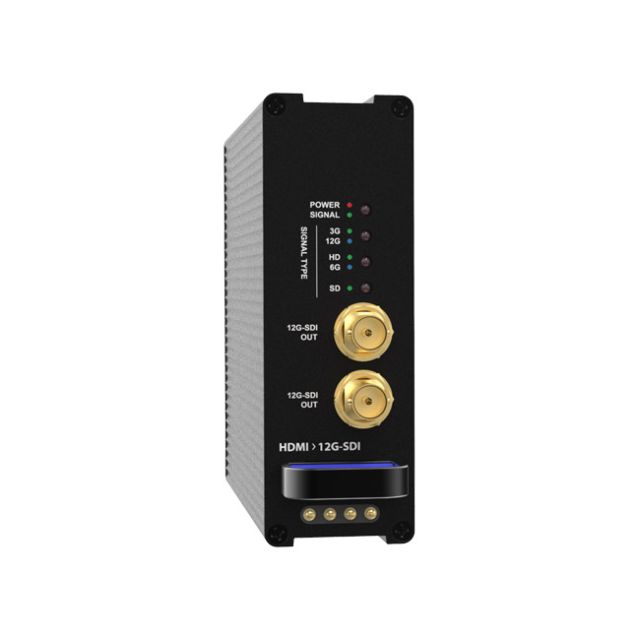

The Theatrixx HDMI to 12G-SDI Reversible Module is a card for the 8-Bay Reversible Rackmount Converter system, built for touring and broadcast setups that need HDMI sources converted to SDI without exposed circuitry or a tangle of external power bricks.

• Reversible Front/Rear Orientation: Inserts into the 8-Bay Frame in either direction so inputs and outputs can face the front or back of the rack.
• Magnetic Spring-Pin Power: Gold-plated, redundant spring pins deliver DC power from the frame, eliminating separate power cabling.
• HDMI 2.0 Input to Dual 12G-SDI Output: One locking HDMI 2.0 input feeds two 12G/6G/3G/HD/SD-SDI BNC outputs.
• Up to 4096x2160p60 Support: Handles 12G, 6G, 3G, HD, and SD formats with automatic signal detection.
• Enclosed PCB Protection: Fully enclosed module design protects against static shock, dust, and general wear.
