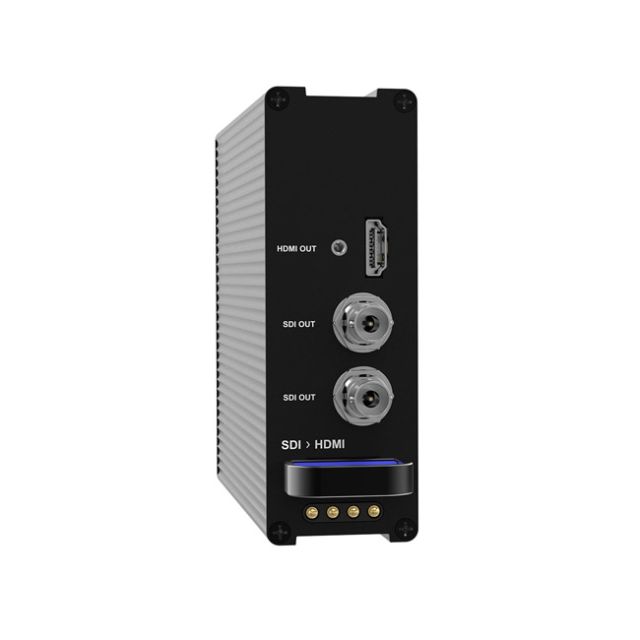

Theatrixx SDI to HDMI Reversible Module

The Theatrixx SDI to HDMI Reversible Module is an insertable card for the 8-Bay Reversible Rackmount Converter system, built so integrators can mix HDMI and SDI conversion modules in a single frame and orient inputs/outputs to either the front or back of the rack as the install requires.

• 1x 3G/HD/SD SDI BNC Input: Primary video input for this module.
• 1x HDMI 1.2 Type A Output Plus 2x 3G/HD/SD SDI BNC Outputs: Delivers converted video output(s).
• Reversible Insertion: Fits the 8-Bay Frame in either direction to position connections at the front or back.
• Enclosed, No Exposed PCBs: Protects the electronics against static shock, dust, and wear.
• Magnetic Spring-Pin Power Delivery: Gold-plated, redundant spring pins deliver DC power with no external power bricks or extra cabling.
• Broad Format Support: Handles 3G, HD, and SD signals up to 1080p60 with automatic format detection.
• 20W Power Draw at 12VDC: Fed by the 8-Bay Rackmount Frame's reversible redundant power supply.
