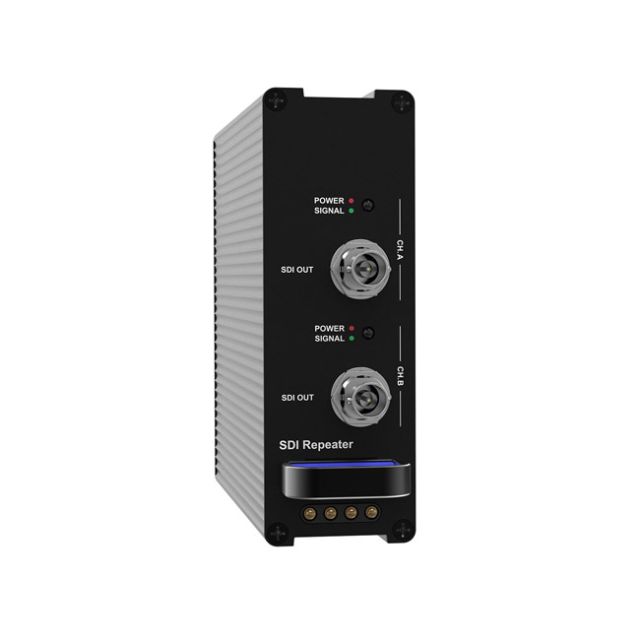

The Theatrixx SDI Repeater is a dual-channel reversible module built for Theatrixx's 8-Bay Reversible Rackmount Converter system. Its reversible, fully enclosed design lets installers position inputs and outputs at the front or back of the rack depending on the application.
- Reversible orientation: Inserts into the 8-Bay Frame in either direction, positioning I/O at the front or back as needed.
- Fully enclosed module: No exposed PCBs, protecting the electronics against static shock, dust, and general wear.
- Gold-plated spring pin power: Redundant, magnetically retained spring pins deliver DC power without external power bricks or extra cabling.
- Broad SDI format support: Handles 3G, HD, and SD SDI formats up to 1080p60, with automatic signal format detection and support for SMPTE 425M, 424M, 292M, and 259M standards.
- Standalone option available: Also available as a standalone converter outside the modular rack system.
| Connections | 2x 3G/HD/SD SDI BNC input, 2x 3G/HD/SD SDI BNC output |
| Dimensions (H x D x W) | 121.5 x 225 x 41mm |
| Weight | 710g (1.56 lbs) |
| Power | 12VDC, 20W, fed by XVVRF8 8-Bay Rackmount Frame |
