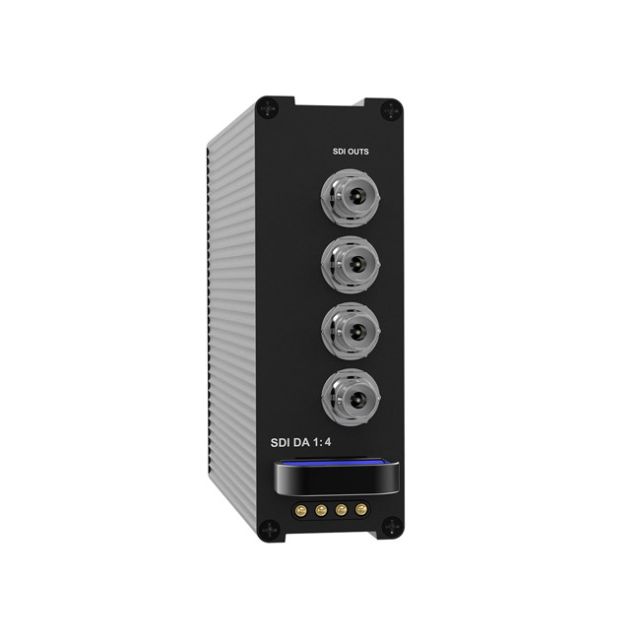

Theatrixx SDI Distribution Amplifier 1:4 Reversible Module

The Theatrixx SDI Distribution Amplifier 1:4 Reversible Module is a broadcast rack module built for touring and install engineers using Theatrixx's 8-Bay Reversible Rackmount Converter system. It splits one SDI input into four reclocked, amplified outputs, and can be inserted in either direction so I/O connections face the front or back of the rack as needed.

• 1-to-4 SDI Distribution: Splits one 3G/HD/SD-SDI input into 4 reclocked and amplified SDI outputs.
• Reversible Rack Insertion: Inserts into the 8-Bay Frame in either direction, positioning inputs/outputs at the front or back of the unit as needed.
• Auto Format Detection: Automatically detects the incoming signal format across a wide range of 3G, HD, and SD standards.
• Enclosed, Tool-Free Power: Gold-plated, spring-pin magnetic power delivery means no exposed PCBs and no external power bricks or messy cabling.
• Compact Module Footprint: Measures 121.5mm high, 225mm deep, and 41mm wide, drawing 20W from the 8-Bay Rackmount Frame.
