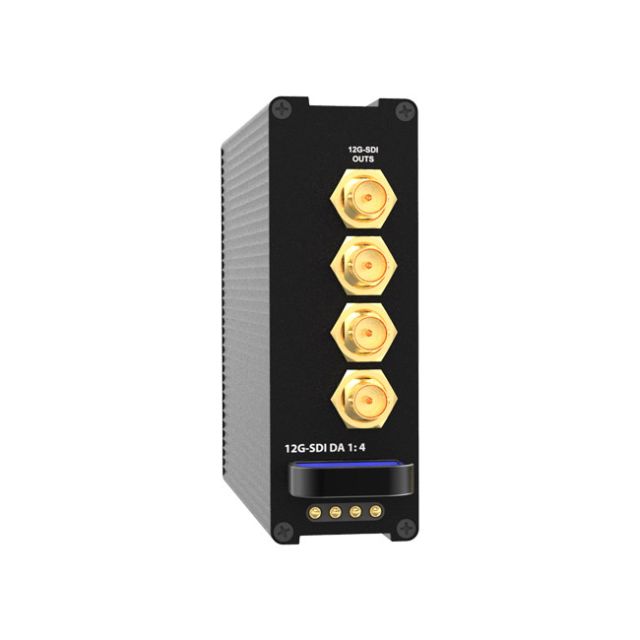

Theatrixx 12G-SDI Distribution Amplifier 1:4 Reversible Module

The Theatrixx 12G-SDI Distribution Amplifier 1:4 Reversible Module splits one 12G/6G/3G/HD/SD SDI input into four reclocked and amplified SDI outputs, and like Theatrixx's other reversible modules, it fits into the 8-Bay Reversible Rackmount frame facing either direction. It automatically detects the incoming signal format and supports resolutions up to 4096x2160p60.

• 1x SDI input to 4x reclocked, amplified SDI outputs: Distributes a single 12G/6G/3G/HD/SD signal to four destinations without signal degradation.
• Supports up to 4096x2160p60 (12G) and down to SD formats: Covers a wide range of production formats on one module.
• Automatic signal format detection: Adjusts to the incoming signal without manual configuration.
• Reversible insertion into the 8-Bay Reversible Rackmount frame: Positions inputs/outputs at the front or back of the unit depending on the application.
• Gold-plated, redundant spring pins with magnetic retention: Delivers DC power to the module without messy cabling or external power bricks.
