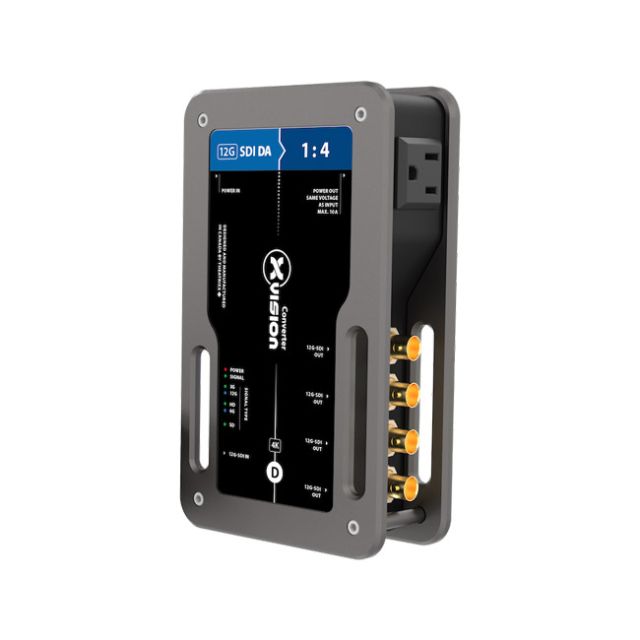

Theatrixx xVision 12G-SDI DA 1x4 Distribution Amplifier

Theatrixx built the xVision 12G-SDI Distribution Amplifier for touring and live-event crews who need a 1x4 SDI splitter that survives being loaded in and out of a road case night after night, not a rack-mount box meant to stay put. Its integrated locking power supply and multiple mounting options mean it can be clamped to truss, mounted on an LCD, or worn on a belt without extra hardware. Every output is reclocked and amplified, so a single 12G-SDI source can feed four destinations without signal degradation.

• Distributes 1 SDI input to 4 reclocked outputs: All outputs are fully reclocked and amplified for clean signal distribution.
• Integrated locking power supply: Built-in PowerCON connector eliminates external wall-wart power bricks.
• Built-in 120V outlet: Powers a nearby projector, TV, or laptop directly from the unit without a separate power bar.
• Multiple mounting options: Includes C-clamp, wall-mount, LCD-mount, and belt-adapter mounting for varied field setups.
• Magnetic stacking system: Non-skid rubber pads and magnets let units stack securely without gaffer tape.
