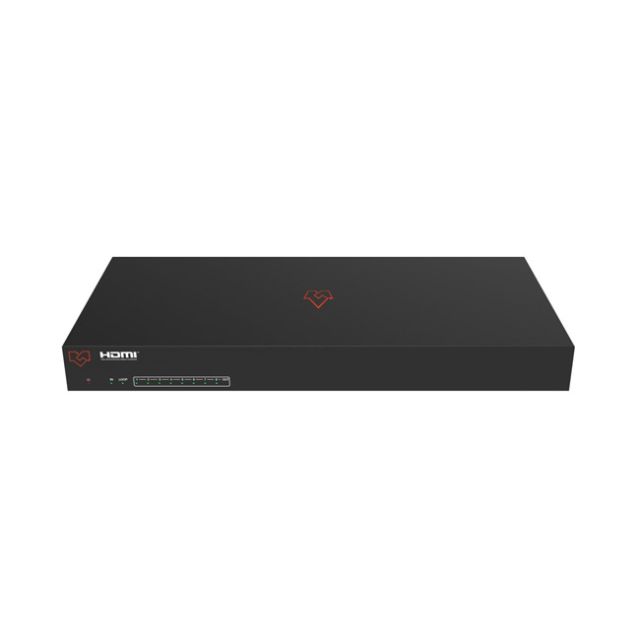

VigilLink 1x8 HDMI 2.0 Distribution Amplifier over HDBaseT (150m, 18Gbps)

VigilLink 1x8 HDMI 2.0 Distribution Amplifier over HDBaseT (150m, 18Gbps)
This 18Gbps HDMI 1x8 HDBaseT Splitter can distribute 1 source signal to any 8 display devices. Support video resolution up to 4K2K@60Hz 4:4:4. It is designed with 1 HDMI loop output and 8 HDBaseT outputs. The HDMI signal transmission distance can be extended up to 120 meters at the resolution of 4K2K@60Hz, or 150 meters at 1080P@60Hz via a single CAT6/ 6a/7 cable. The product supports IR and RS-232 signal pass-through, audio extract functions, and advanced EDID management.
Featured Highlights?

HDMI 2.0b, HDCP 2.2, and HDCP 1. x compliant
Supports 18Gbps video bandwidth
Supports video resolution up to 4K2K@60Hz 4:4:4
Supports HDR, HDR10+, HLG, and Dolby vision
Supports up to 7.1CH HD audio pass-through
Supports digital and analog audio de-embedded output
Extends the signal transmission distance up to 120 meters at the resolution of 4K2K@60Hz, 150 meters at 1080P@60Hz via a single CAT6/6a/7 cable
Supports 1 HDMI input, 1 HDMI loop output, and 8 HDBaseT outputs.
IR, RS-232 routed to HDBaseT output
Advanced EDID management
Supports one-way POC function (only from transmitter to receiver)
Compact design for easy and flexible installation

Package Contents
1?? 18Gbps HDMI 1??8 HDBaseT Splitter
8?? HDBaseT Receiver
9?? IR Blaster Cable (1.5 meters)
9?? 20K~60KHz IR Receiver Cable (1.5 meters)
9?? 3-pin Phoenix Connector
1?? 5-pin Phoenix Connector
18?? Mounting Ear
1?? 24V/3.75A DC Locking Power Adapter
1?? User Manual
