VigilLink 2x2 HDMI 2.0 Matrix (18Gbps)

VigilLink 2x2 HDMI 2.0 Matrix (18Gbps)

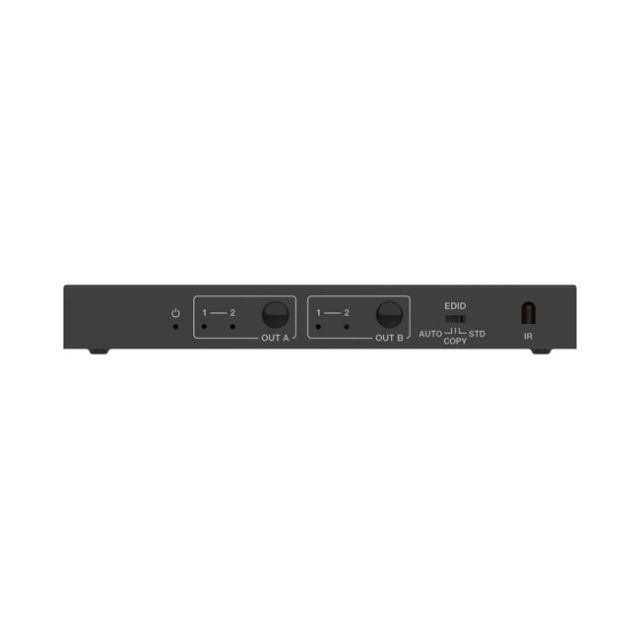

The 18Gbps 2x2 HDMI Matrix switcher supports the transmission of video signals (up to 4K2K@50/60Hz YCbCr 4:4:4) from two HDMI sources to two HDMI displays simultaneously. This product supports audio extraction from output A to optical and analog output. It supports three modes of EDID setting (AUTO, COPY, and STD). Flexible control via panel buttons and IR remote; the corresponding LED indicator on the front panel will be illuminated.
Features
?? HDCP2.2 / HDCP1.x, DVI 1.0 compliant.?? Supports 18Gbps video bandwidth?? Video resolution is up to 4K2K@50/60Hz (4:4:4).?? Supports digital and analog audio extract output from output A?? EDID can be selected with AUTO, COPY, and STD mode via the selector on the front panel.?? Supports analog audio PCM 2.0.?? Supported optical audio pass-through format: LPCM 2.0/2.1CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6/DTS-HDMA 5.1, DTS HD-HRA 5.1.?? Supports HDR function?? Flexible control via panel buttons and IR remote.
Package Contents
? 1?? 2??2 HDMI Matrix Switcher? 1?? 5V/1A Power Adapter? 1?? Matrix IR Remote? 1?? User Manual
