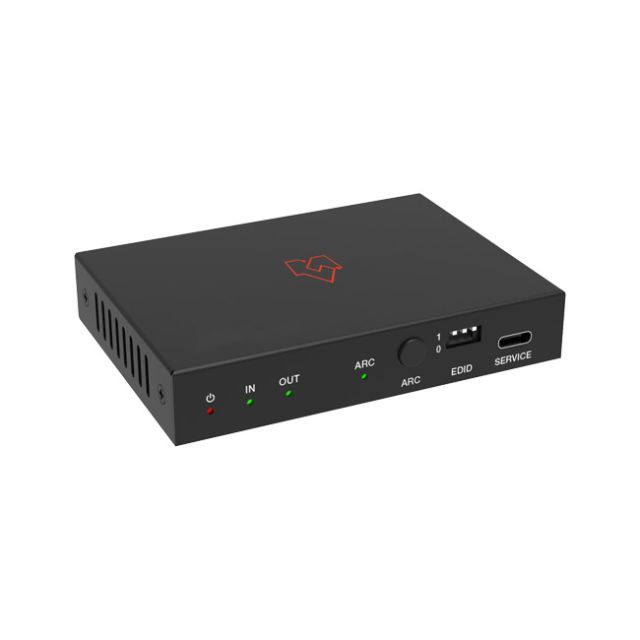

VigilLink 48Gbps HDMI 2.1 Audio De-embedder

VigilLink 48Gbps HDMI 2.1 Audio De-embedder
The 48Gbps HDMI audio de-embedder is designed to extract audio signals from an HDMI source or ARC-compatible TV. It outputs both analog stereo and digital S/PDIF audio, along with a buffered HDMI video output. With support for data rates up to 48Gbps, it meets HDMI 2.1 and HDCP 2.3 standards, and is compatible with UHDTV 8K@60Hz. Featuring EDID management and cable equalization, it offers seamless integration into HDMI setups. This device provides a simple solution for HDMI installations, allowing audio signals to be sent to stereo audio or surround sound systems.
Features
?? HDMI 2.1 and HDCP 2.3 compliant?? Support 48Gbps FRL and 18Gbps TMDS video bandwidth?? Support video resolution up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit?? HDMI 2.1 protocols: VRR, ALLM, QMS, QFT, SBTM are supported?? HDR, HDR 10, HDR 10+, Dolby Vision, HLG pass-through?? LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audio pass-through?? HDMI input audio or TV ARC audio de-embedded to S/PDIF and L/R audio output?? Support CEC control from output devices to input sources?? Advanced EDID management?? Compact design for easy and flexible installation
Package Contents
? 1 ?? 48Gbps HDMI Audio De-embedder? 1 ?? 5V/1A Multinational Power Supply? 1 ?? User Manual
