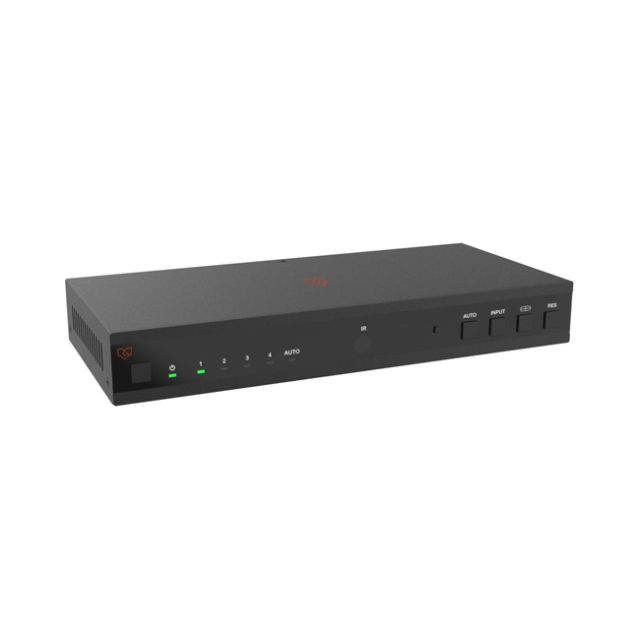

VigilLink 4x1 HDMI 2.0 4K60 Multiviewer with Seamless Switching

VigilLink 4x1 HDMI 2.0 4K60 Multiviewer with Seamless Switching
This 4K60 4x1 Multiview Seamless UHD Video Switcher was developed to support higher output resolution (4K@60) for multiple sources on a single screen. It can combine up to four video signals onto a single UHD or HD displayer. The user can easily manage each input via the supplied Control Software and create the layout and position of any of the four inputs on a single monitor.
This device supports the full range of input video resolutions up to 4K@60 (RB) and audio RCA /Optical de-embedding supported for external audio distribution systems.
This device can be controlled via front panel buttons, IR remote, and RS-232 commands.
Features
?? HDMI 2.0b, HDCP 2.2, and HDCP 1 .x compliant?? Supports 18Gbps video bandwidth?? Input and output resolutions support up to 4K@60Hz?? Supports LPCM, AC3, DD+, DTS, DTS-HD, up to 7.1 audio channel?? Seamless switching between input channels and combined multiple images on a single UHD monitor?? Up to 8 display modes: SINGLE, PIP, PBP (1), PBP (2), Triple (1), Triple (2), Quad (1), Quad (2)?? Seamless switching on single screen display mode?? Fast switching on Multiview display mode?? Audio de-embedding via analog and optical fiber audio ports?? Supports volume control and independent audio selection?? Supports OSD navigation for advanced setting?? EDID management?? Control via front panel buttons, IR remote, RS-232 commands?? Compact design for easy and flexible installation
Package Contents
? 1 x 4K60 4x1 Multiview Seamless UHD Video Switcher? 1 x IR Remote? 1 x 3pin-3.81mm Phoenix Connector (male)? 1 x 38KHz IR Wideband Receiver Cable (1.5 meters)?? 2 x Mounting Ears? 4 x Machine Screws (KM3*4)?? 4 x Rubber Feet?? 1 x 12V/2.5A Locking Power Adapter?? 1 x User Manual
