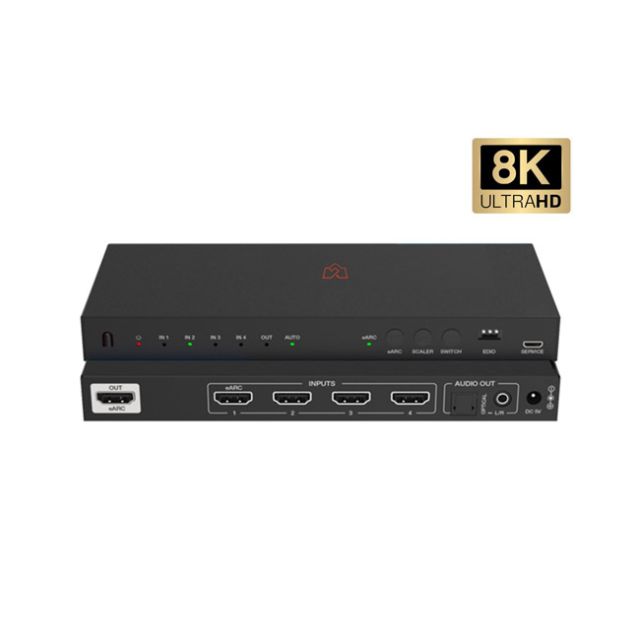

VigilLink 4x1 HDMI Switch with Audio De-embedded (48Gbps)

VigilLink 4x1 HDMI Switch with Audio De-embedded (48Gbps)
This 8K HDMI 4x1 Switcher can switch any of the four HDMI source signals to one HDMI display, with video resolution up to 8K@60Hz 4:2:0. It supports advanced EDID management, CEC control, ARC/eARC and audio de-embedded function (Output through the optical and analog audio port). Furthermore, firmware upgrade via USB Type C port is supported. This multi-functional product can be widely applied in scenarios of demonstration, video conference, multimedia teaching and other occasions requiring for big-screen demonstration.
Featured Highlights

HDMI 2.1 and HDCP 2.3 compliant
Support 48Gbps FRL and 18Gbps TMDS video bandwidth
Video resolution is up to 8K@60Hz 4:2:0 12bit, 8K@30Hz 4:4:4 12bit, 4K@120Hz 4:4:4 12bit
HDMI 2.1 protocol: VRR, ALLM, QMS, QFT, SBTM are supported
Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
Support HDMI audio formats: LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audio pass-through
Features 4 x HDMI inputs routed to 1 x HDMI output
Support HDMI input and TV eARC audio de-embedded to SPDIF and L/R audio output
Support HDMI input and TV eARC audio to output to SONOS ARC & Beam or any eARC soundbar
Support CEC control from TV at output to source at input
Support CEC volume control from TV to any eARC sound system
Support advanced EDID management? ? ? ?

Package Contents
1?? 8K HDMI 4x1 Switcher
1?? 5V/1A Power Adapter (USA Standard)
1?? IR Remote
1?? User Manual
