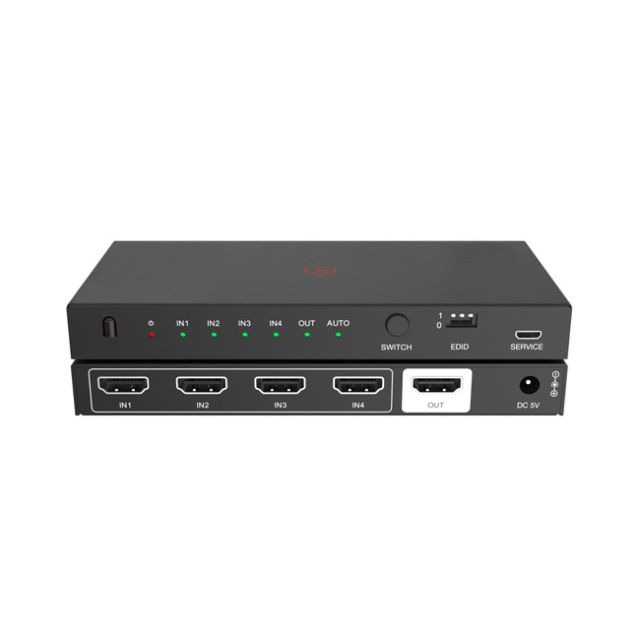

Vigillink 4X1 HDMI Switch With Edid (48Gbps)

Vigillink 4X1 HDMI Switch With Edid (48Gbps) This 48Gbps 4X1 HDMI Switcher Is An ULtrathin Auto Switcher, With Four HDMI Video Inputs And One HDMI Output. The Video Resolutions Is Up To 8K@60Hz 4:2:0 12Bit. It Supports HDr 10, HDr 10+, Dolby Vision And MULtichannel Audio Format. Built-In Edid Dip Switch Supports AdvanCEd Edid Management. Furthermore, The FIRmware Update At USB Type C Port Is Supported. Featured Highlights HDMI 2.1 And HDcp 2.3 Compliant Support 48Gbps Frl And 18Gbps Tmds Video Bandwidth 8K@60Hz 4:2:0 12Bit, 8K@30 4:4:4 12Bit, 4K@120Hz 4:4:4 12Bit Video Support Support HDr, HDr10, HDr10+, Dolby Vision, Hlg Pass-Through HDMI 2.1 Protocols: Vrr, Allm, Qms, Qft, Sbtm Are Supported Support HDMI Audio Formats: Lpcm 7.1Ch, Dolby TrueHD, Atmos And Dts-HD Master Audio 4 X HDMI Inputs Routed To 1 X HDMI Output Control Via Front Panel Button And IR Remote Support Auto Input Switching And Manual Input Switching AdvanCEd Edid Management CEc Control From Tv At Output To SourCE At Input Package Contents 1À” 48Gbps 4X1 HDMI Switcher 1À” 5V/1A Power Adapter (Usa Standard) 1À” IR Remote 1À” User Manual
