VigilLink 4x1 HDMI Switch with EDID (48Gbps)

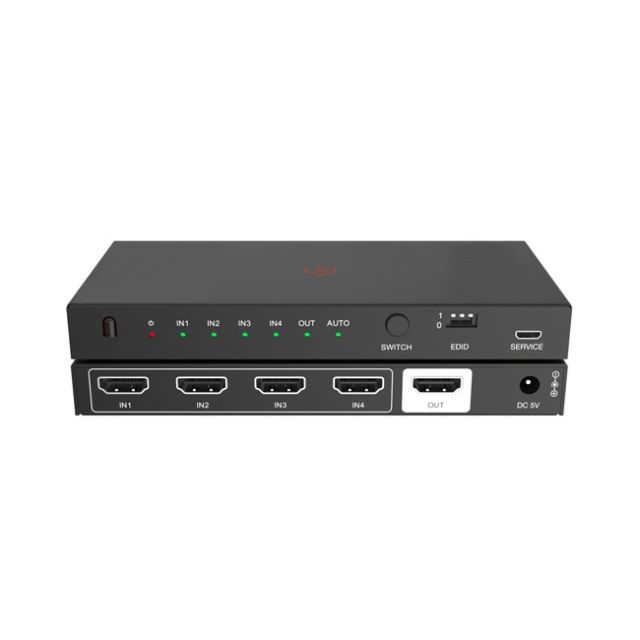

This 48Gbps 4x1 HDMI Switcher is an ultrathin auto switcher, with four HDMI video inputs and one HDMI output. The video resolutions is up to 8K@60Hz 4:2:0 12bit. It supports HDR 10, HDR 10+, Dolby Vision and multichannel audio format. Built-in EDID DIP switch supports advanced EDID management. Furthermore, the firmware update at USB Type C port is supported.
Featured Highlights
HDMI 2.1 and HDCP 2.3 compliant
Support 48Gbps FRL and 18Gbps TMDS video bandwidth
8K@60Hz 4:2:0 12bit, 8K@30 4:4:4 12bit, 4K@120Hz 4:4:4 12bit video support
Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
HDMI 2.1 protocols: VRR, ALLM, QMS, QFT, SBTM are supported
Support HDMI audio formats: LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master Audio
4 x HDMI inputs routed to 1 x HDMI output
Control via front panel button and IR remote
Support auto input switching and manual input switching
Advanced EDID management
CEC control from TV at output to source at input? ? ? ?
Package Contents
1?? 48Gbps 4x1 HDMI Switcher
1?? 5V/1A Power Adapter (USA Standard)
1?? IR Remote
1?? User Manual
